Ku-Band Diplexer | Model 14510

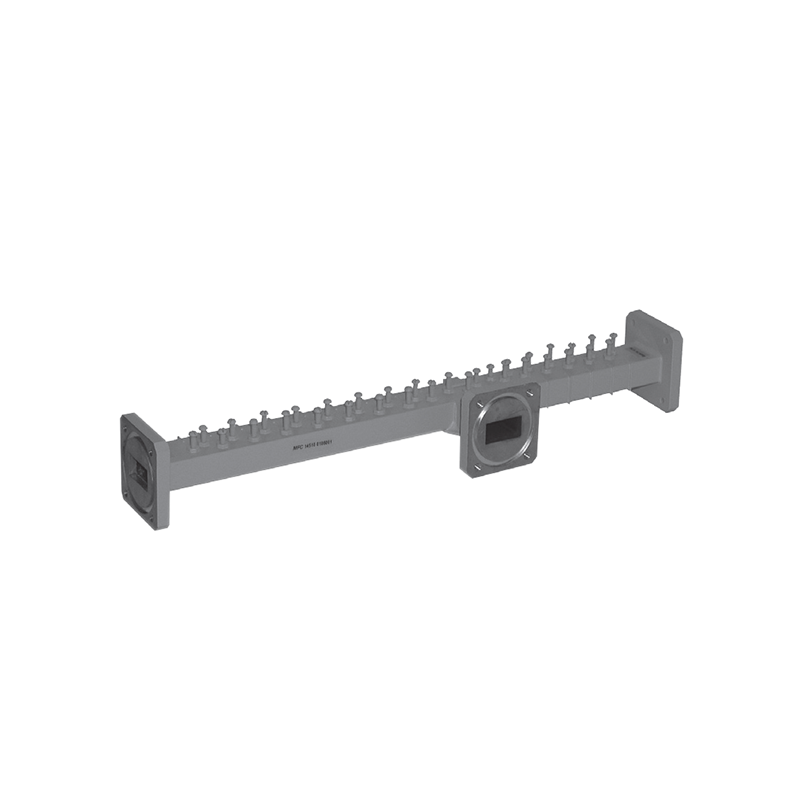

The Model 14510 Ku-band diplexer enables simultaneous transmit and receive operation through a single waveguide run. With integrated bandpass filters for both uplink and downlink paths, it ensures high isolation and low insertion loss—ideal for cost-effective, high-performance SATCOM installations.

Key Features:

Transmit Band (TX): 14.0–14.5 GHz

Receive Band (RX): 11.7–12.2 GHz

Insertion Loss:
• TX: 0.35 dB typ.
• RX: 0.35 dB typ.

VSWR: 1.375:1 max (TX & RX)

Isolation: 80 dB min (TX & RX)

Waveguide: WR75 with cover flanges

Dimensions: 10.75 × 1.5 × 2.125 inches

Finish: Gray lacquer

Options: Custom single-channel, partial band, or temperature-compensated versions available
