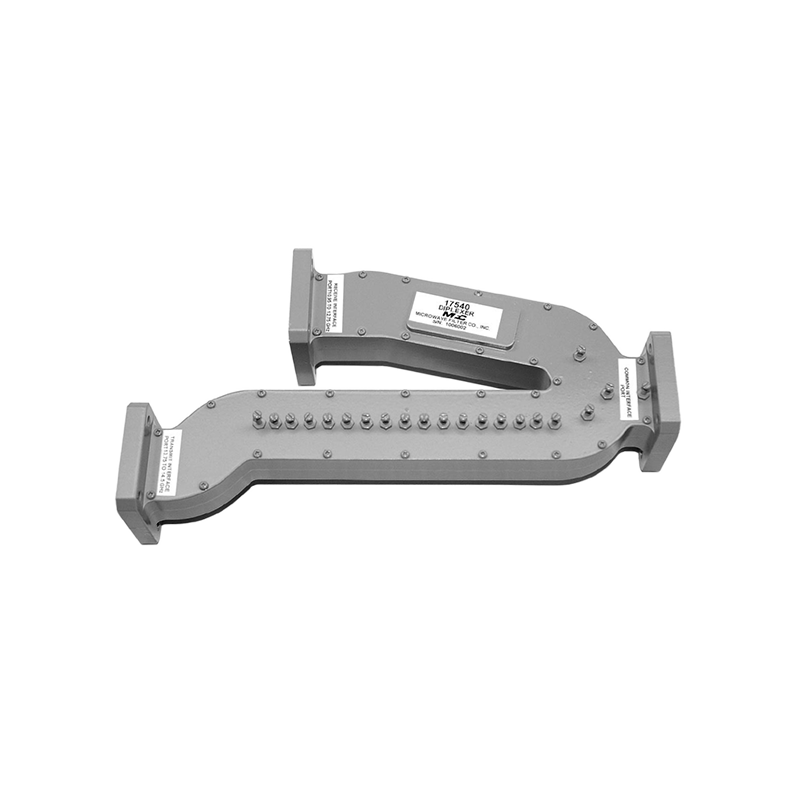

Super Extended Ku-Band Diplexer | Model 17540
The Model 17540 diplexer supports super-extended Ku-band applications with high-selectivity filters that provide exceptional isolation between TX and RX paths. Its compact design and standard WR75 interface make it ideal for space-constrained SATCOM installations.
Key Features:
Transmit Band (TX): 13.75–14.5 GHz
Receive Band (RX): 10.95–12.75 GHz
Insertion Loss:
• TX: 0.4 dB max
• RX: 0.3 dB max
Return Loss: 17 dB typ (TX & RX)
Rejection:
• TX: 70 dB min
• RX: 100 dB min / 55 dB min
Flanges: WR75 Cover
Dimensions: 7 × 3.9 × 1.5 inches
Finish: Gray lacquer
Applications: Compatible with standard, extended, and super-extended Ku-band systems
MFC 17540
- Receive Band
- 10.95 - 12.75 GHz
- Output Band
- 13.75–14.5 GHz
- Ports
- 2
