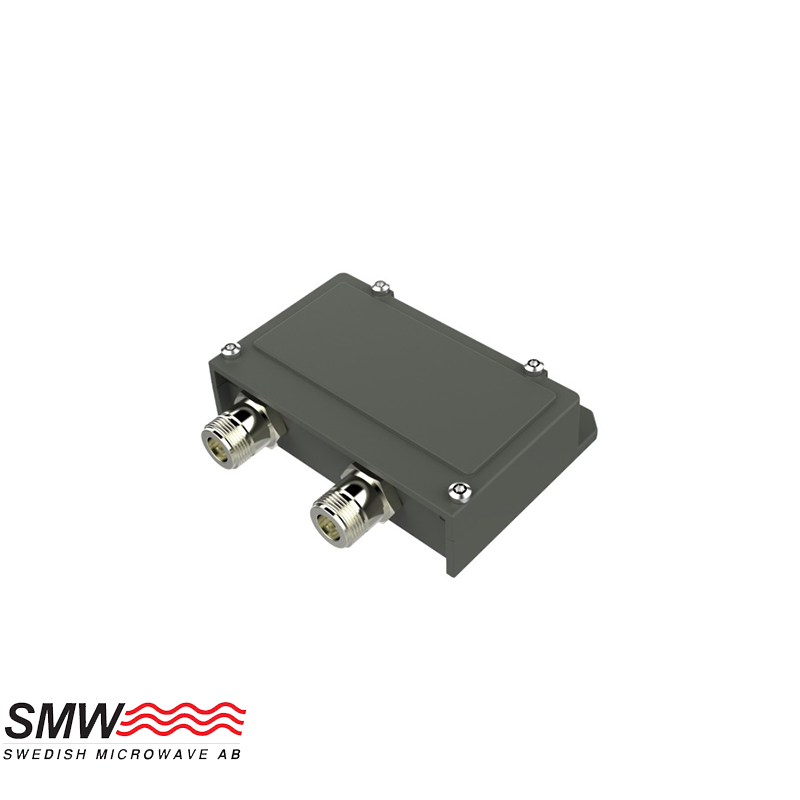

SMW Diplexer 10 MHz and L-Band

SMW L-Band / 10 MHz Diplexer | Passive Reference Signal Injector

The SMW L-Band / 10 MHz Diplexer is a compact, passive solution for combining an external 10 MHz reference signal with an L-band signal onto a single coaxial cable—ideal for LNBs and BUCs that require a separate reference input. Designed for use with the SMW 10 MHz Recovery Oscillator or any standard 10 MHz source, this diplexer offers low insertion loss and rugged, IP67-rated construction for reliable outdoor deployment.

Key Features:

• Combines L-band and 10 MHz reference signals on one coaxial line
• Passive operation—no external power required
• Low insertion loss for high-performance signal transmission
• IP67-rated housing for outdoor use
• Wide operating temperature range
• Connector options: F-type, N-type, or SMA
• Ideal for LNB and BUC systems with external reference requirements

Applications:

• Injecting 10 MHz reference into L-band RF lines
• SATCOM and VSAT terminal integration
• Outdoor RF systems requiring compact, passive combining
