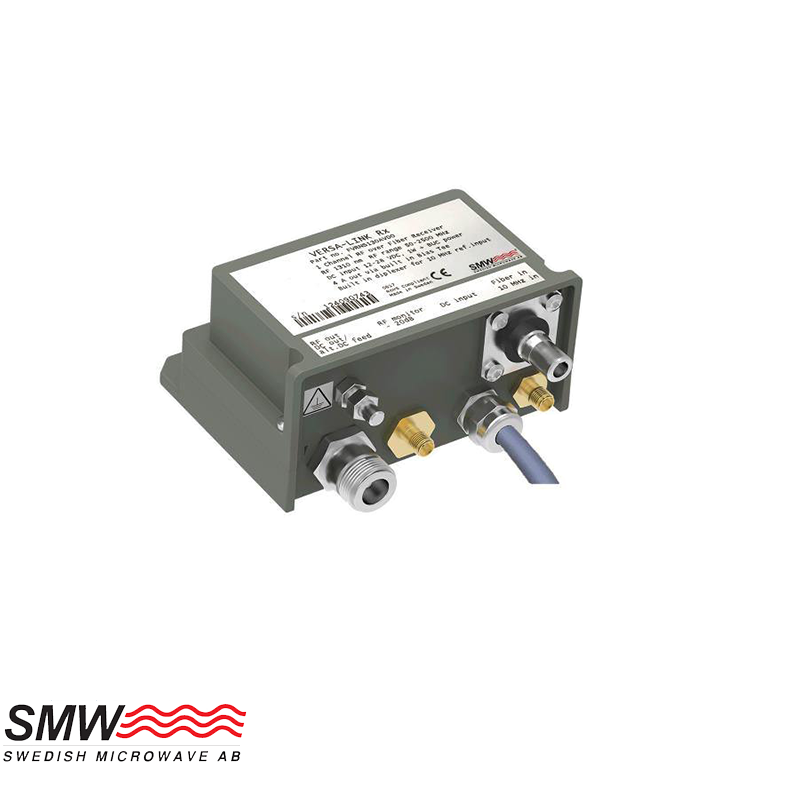

SMW Versa-Link System

Versa-Link RF over Fiber System | 1x L-Band, Outdoor-Ready, Single-Channel IFL

The SMW Versa-Link is a rugged, fully analog RF-over-Fiber system engineered for transmitting a single L-band signal over long distances via single-mode fiber. Ideal for Satcom, broadcast, GPS, and RF transport applications, it delivers high carrier-to-noise ratio (C/N), manual gain control, and built-in bias-T support—all in an IP67 weatherproof enclosure with quick-connect Q-ODC fiber ports.

Key Features:

• Frequency Range: 290–2500 MHz (optional 10–2500 MHz)
• Optical Transmission: 1310 nm (up to 20 km) or optional 1550 nm (up to 40 km)
• Single RF channel transmission over single-mode fiber
• Manual RF gain control for fine-tuned signal alignment
• External 10 MHz reference input with diplexer
• Built-in 4A bias-Tee for LNB/BUC powering
• Fully analog design – plug-and-play operation
• Rugged IP67-rated aluminum housing for outdoor deployment
• Operating temperature: –40°C to +80°C
• Q-ODC quick-connect fiber interface
• Optional DIN rail mount for multi-channel racks

Typical Applications:

• Single-fiber LNB downlink or modem uplink
• RF signal transport for Satcom, GPS, terrestrial TV, FM
• Outdoor VSAT terminal deployments
