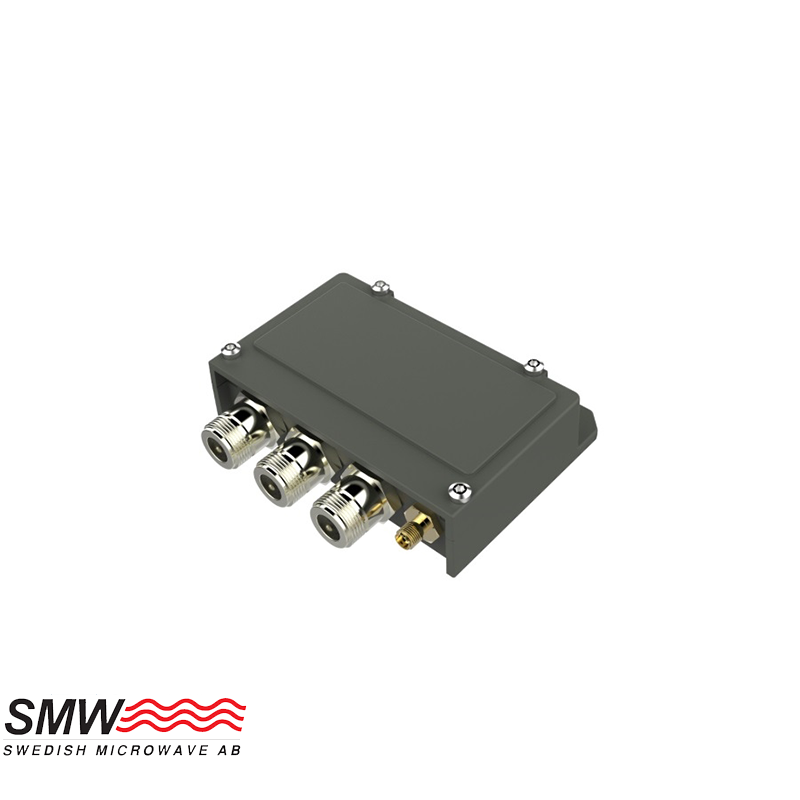

SMW 10 MHz Recovery Oscillator / DC Inserter L-Band

SMW 10 MHz Recovery Oscillator | Phase Noise Cleaner for LNB/BUC Systems

The SMW 10 MHz Recovery Oscillator is engineered to significantly reduce phase noise in 10 MHz reference signals, enhancing stability for sensitive satellite communication systems. Ideal for use with LNBs or BUCs, it features dual 10 MHz outputs, L-Band loopthrough, and flexible power input options. Its internal OCXO provides a “cleaned” output with ~50% improvement at 10 Hz offset and full phase noise suppression from 100 Hz and beyond—perfect for high-performance RF chains.

Key Features:

• Cleans phase noise of noisy 10 MHz reference signals
• Ideal for stabilizing LNB and BUC performance
• Phase noise improvement: ~50% @ 10 Hz, 100% @ ≥100 Hz offset
• Dual 10 MHz outputs
• Internal low-power OCXO for stable reference generation
• L-Band and 22 kHz bypass supported
• Available connectors: F-type, N-type, SMA
• Optional separate DC input via connector or pigtail
• Compact design with excellent signal conditioning

Applications:

• Reference signal cleanup in SATCOM ground stations
• Signal stabilization for frequency-sensitive BUCs and LNBs
• Low-phase-noise installations in broadcast and VSAT systems
