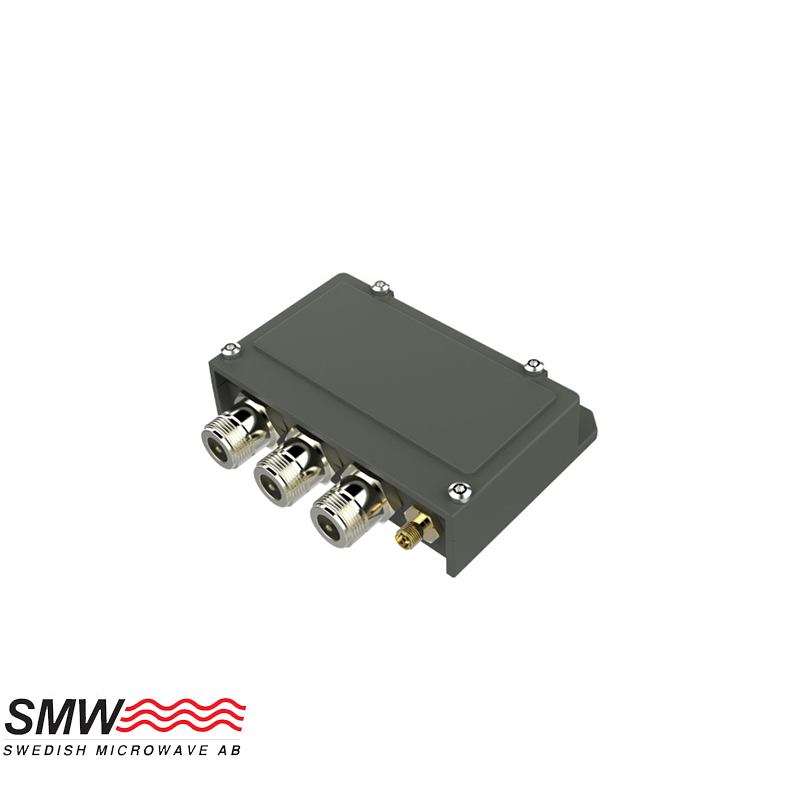

SMW 10 MHz Oscillator with Diplexer / DC inserter L-Band

Quantity

Request for Quotation

Your Query is sent.

  •     *Required Fields

Loading



Security policy



Delivery policy



Return policy

SMW 10 MHz Reference Oscillator | Ultra-Stable LO Source for LNB/BUC Systems

The SMW 10 MHz Reference Oscillator delivers exceptional frequency stability and ultra-low phase noise for demanding SATCOM applications. Designed for use with LNBs and BUCs, it features a very low power OCXO and achieves ±20 ppb LO stability—making it ideal for systems requiring precise frequency control. Standard features include L-Band and 22 kHz signal bypass, and it's available with flexible connector options and optional dual-output or separate DC input configurations.

Key Features:

  • Precision 10 MHz reference for LNB and BUC synchronization
  • Ultra-high LO stability: ±20 ppb (±20 x 10⁻⁹)
  • Very low phase noise OCXO
  • Low power consumption
  • Supports L-Band and 22 kHz signal bypass
  • Connector options: F-type, N-type, or SMA
  • Optional separate DC power input (connector or pigtail)
  • Optional dual 10 MHz output

Applications:

  • Frequency-stable SATCOM uplinks and downlinks
  • Reference signal generation for high-precision RF systems
  • Ground stations, VSAT terminals, and broadcast hubs
