Norsat EBPF-C-4 C-Band 5G Extreme Bandpass Filter 3.754 – 4.2 GHz
  • Norsat EBPF-C-4 C-Band 5G Extreme Bandpass Filter 3.754 – 4.2 GHz

Norsat eBPF-C-4 C-Band 5G Extreme Bandpass Filter 3.8 – 4.2 GHz

$1,000.00

• Passband Frequency: 3.8 – 4.2 GHz

• Rejection: 60 dB min at 3.782 GHz; 25 dB min at 4.230 GHz

• Insertion Loss: 1.4 dB max.

• Country of Origin: Thailand

Quantity
Limited quantity available. Please contact our sales team for details.



Security policy



Delivery policy



Return policy

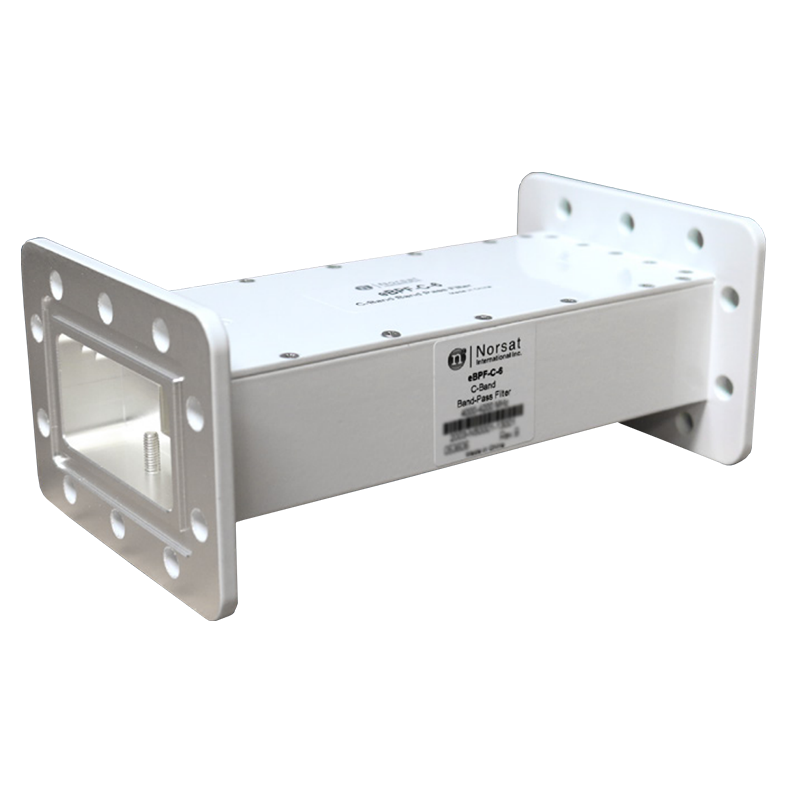

Norsat eBPF-C-4 C-Band 5G Rejection Extreme Bandpass Filter

The Norsat eBPF-C-4 is a C-Band extreme 5G rejection bandpass filter that protects satellite downlinks from interference. With a wide 3.8–4.2 GHz passband, steep roll-off, low insertion loss, and high stopband rejection, it ensures reliable SATCOM performance in challenging RF environments.

Band: C-Band
Passband Frequency: 3.8 – 4.2 GHz
Insertion Loss: ≤1.4 dB
Rejection: ≥60 dB at 3.782 GHz; ≥25 dB at 4.230 GHz
Group Delay Variation: ≤3.0 ns within 0.5 MHz
VSWR: 1.4:1 max
RF Input Connector: CPR-229G waveguide (grooved)
RF Output Connector: CPR-229F
IP Rating: IP67
Dimensions (L × W × H): 185 × 100 × 71 mm
Weight: 0.97 kg
Logistics: Packaged 270 × 140 × 115 mm; 1.3 kg
Country of Origin: Thailand (Ex-Works Richmond, BC, Canada)
ECCN: EAR99; HS Code: 8517690000

eBPF-C-4
Type
Bandpass Filters
Passband
3.8–4.2 GHz
Stopband Rejection
60-70 dB
