Norsat BPF-C-7 C-Band 5G Rejection Bandpass Filter 4.1 – 4.2 GHz
$532.00
• Passband Frequency: 4.1 – 4.2 GHz
• Rejection:
≥25 dB at 4.050 GHz and 4.250 GHz
≥60 dB at 3.950 GHz and 4.350 GHz
≥70 dB at 3.900 GHz and 4.400 GHz
• Insertion Loss: 0.5 dB max.
• Country of Origin: South Korea
Security policy
Delivery policy
Return policy

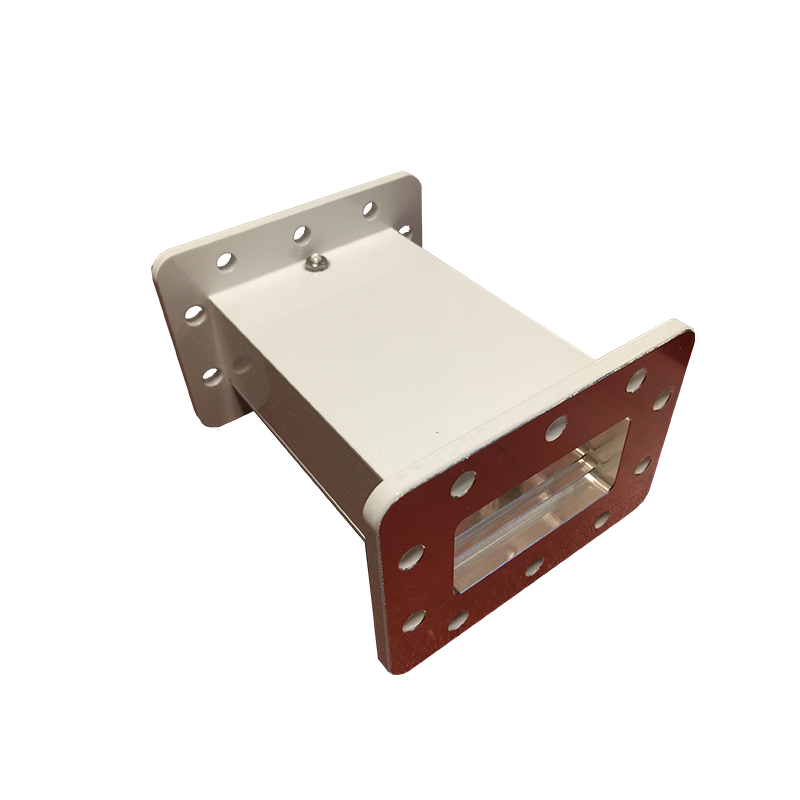

Norsat BPF-C-7 C-Band 5G Rejection Bandpass Filter
The Norsat BPF-C-7 is a C-Band 5G rejection bandpass filter designed to block terrestrial interference while preserving satellite signal quality. With steep rejection, low VSWR, and rugged IP67 housing, it is ideal for dependable outdoor SATCOM installations.
Band: C-Band
Input Frequency: 4.1 – 4.2 GHz
Rejection:
≥25 dB at 4.050 & 4.250 GHz
≥60 dB at 3.950 & 4.350 GHz
≥70 dB at 3.900 & 4.400 GHz
Group Delay Variation: ≤0.6 ns within 0.5 MHz
VSWR: 1.4:1 max
RF Input Connector: CPR-229G waveguide (grooved)
RF Output Connector: CPR-229F
IP Rating: IP67
Dimensions (L × W × H): 120 × 100 × 70 mm
Weight: 0.65 kg
Logistics: Packaged 220 × 140 × 120 mm; 1.02 kg
Country of Origin: Korea (Ex-Works Richmond, BC, Canada)
ECCN: EAR99; HS Code: 8517690000
BPF-C-7
- Type
- Bandpass Filters
- Passband
- 4.1–4.2 GHz
- Stopband Rejection
- 70-80 dB
Specific References
• Passband Frequency: 4.1 – 4.2 GHz
• Rejection:
≥25 dB at 4.050 GHz and 4.250 GHz
≥60 dB at 3.950 GHz and 4.350 GHz
≥70 dB at 3.900 GHz and 4.400 GHz
• Insertion Loss: 0.5 dB max.
• Country of Origin: South Korea
