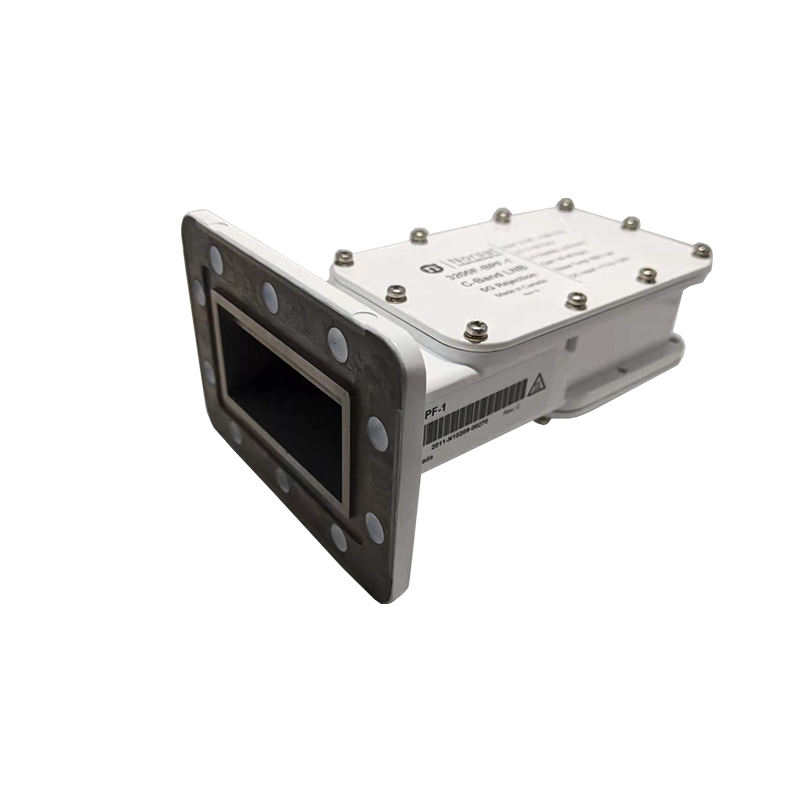

Norsat 3000N-sBPF-6 C-Band 5G Rejection LNB and Switching Bandpass Filter 3.4-4.2/4.0-4.2 GHz

Norsat 3000N-SBPF-6 C-Band 5G Rejection LNB with Switching Bandpass Filter

The Norsat 3000N-SBPF-6 is a dual-band C-Band PLL LNB with integrated switching bandpass filter for superior interference mitigation and signal clarity. With two selectable bands and exceptional LO stability of ±2 kHz, it offers premium performance for professional satellite applications in compact IP66-rated housing.

Band: C-Band

Input Frequency: Band 1: 3.40–4.20 GHz; Band 2: 4.00–4.20 GHz

LO Frequency: 5.15 GHz (for both bands)
LO Stability: ±2 kHz (PLL)
Noise Temperature: typ. 37 K, max. 60 K
Output Frequency: Band 1: 950–1750 MHz; Band 2: 950–1150 MHz
Rejection Performance: < 3.9 GHz and > 4.8 GHz with no degradation
Conversion Gain: typ. 60 dB (55–70 dB range); ≤6 dB flatness
Input VSWR: 2.2:1 max
Output VSWR: 2.5:1 max
Output P1dB: +9 dBm min
Phase Noise: –80 dBc/Hz @ 1 kHz; –85 dBc/Hz @ 10 kHz; –95 dBc/Hz @ 100 kHz
Switching Control: 13 V for Band 1 / 18 V for Band 2
Power Supply: +12 to +24 V DC, 400 mA max
Input Connector: WR-229 grooved waveguide (waterproof)
Output Connector: N-Type, 50 Ω (waterproof)
Environmental: –40 °C to +60 °C operating; –50 °C to +70 °C storage; IP66 rating
Dimensions: 159 × 98.5 × 69.85 mm
Weight: 0.5 kg
Logistics: Packaged 170 × 115 × 75 mm; 0.56 kg
Country of Origin: Canada (Ex-Works Richmond, BC)
ECCN: EAR99; HS Code: 8517690000
