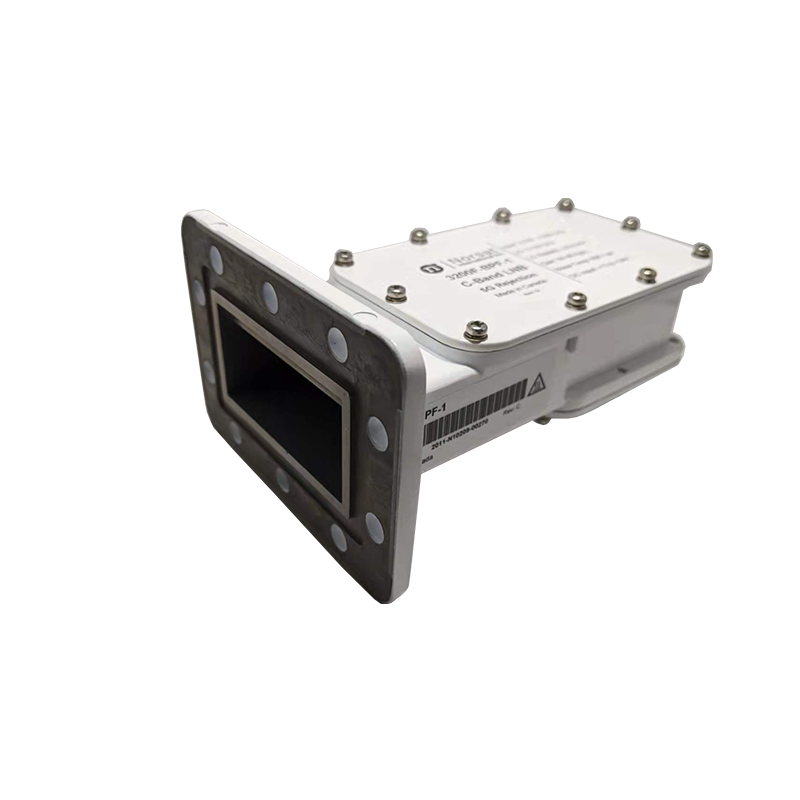

Norsat 3500N-BPF-2 C-Band 5G Rejection LNB and Bandpass Filter 3.625–4.2 GHz
$656.00
• Input Band: 3.625 – 4.2 GHz
• LO Stability: ±100 kHz
• Noise Temperature: 37 K
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy
Norsat 3500N-BPF-2 C-Band 5G Rejection LNB with Bandpass Filter
The Norsat 3500N-BPF-2 is a C-Band PLL LNB with integrated bandpass filter designed to deliver premium satellite signal reception while rejecting 5G interference. Compact and rugged, it ensures excellent performance with low noise, stable LO, and wide dynamic range.
Band: C-Band
Input Frequency: 3.625 – 4.2 GHz
LO Frequency: 5.15 GHz
LO Stability: ±100 kHz (PLL)
Noise Temperature: typ. 37 K, max. 60 K
Output Frequency: 950 – 1525 MHz
Rejection Range: <3.525 GHz and >4.8 GHz
Conversion Gain: typ. 60 dB (55 – 70 dB range), ≤6 dB flatness
Input VSWR: 2.2:1 max
Output P1dB: +9 dBm min
Output VSWR: 2.5:1 max
Phase Noise: -80 dBc/Hz @1 kHz; -85 dBc/Hz @10 kHz; -95 dBc/Hz @100 kHz
Power Requirements: +12 to +24 VDC, 400 mA max
Current Consumption: 400 mA max
Input Connector: CPR-229G waveguide (grooved)
Output Connector: N-Type, 50 Ohm
Environmental: -40°C to +60°C operating; -50°C to +70°C storage; IP66 rating
Dimensions: 159 × 98.5 × 70 mm
Weight: 0.5 kg
Logistics: Packaged 170 × 115 × 75 mm; 0.56 kg
Country of Origin: Canada (Ex-Works Richmond, BC)
ECCN: EAR99; HS Code: 8517690000
3500N-BPF-2
- Type
- 5G-Protected LNBs
- Frequency Band
- C-Band
- Frequency Range
- 3.625 – 4.2 GHz
- Number of Bands
- Single-Band
- Input Band
- 3.625–4.2 GHz
- Output Band
- Band 1: 950 – 1525 MHz
- LO Frequency
- 5.15 GHz
- LO Stability
- ±100 kHz
- Noise Figure
- 0.52 dB
- Rejection Range
- Below 3.525 GHz and above 4.8 GHz
- Switchable Filtering
- No
- Typical Gain
- 60 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- N Type 50 Ohm
