Norsat BPF-C-2 C-Band 5G Rejection Bandpass Filter 3.7 – 4.2 GHz
  • Norsat BPF-C-2 C-Band 5G Rejection Bandpass Filter 3.7 – 4.2 GHz
  • Norsat BPF-C-2 C-Band 5G Rejection Bandpass Filter 3.7 – 4.2 GHz

Norsat BPF-C-2 C-Band 5G Rejection Bandpass Filter 3.625 – 4.2 GHz

$532.00

• Passband Frequency: 3.625 – 4.2 GHz

• Rejection:

  ≥25 dB at 3.575 GHz and 4.250 GHz

  ≥60 dB at 3.475 GHz and 4.350 GHz

  ≥70 dB at 3.425 GHz and 4.400 GHz

• Insertion Loss: 0.5 dB max.

• Country of Origin: South Korea

Quantity
Usually ships within 24 hours.



Security policy



Delivery policy



Return policy

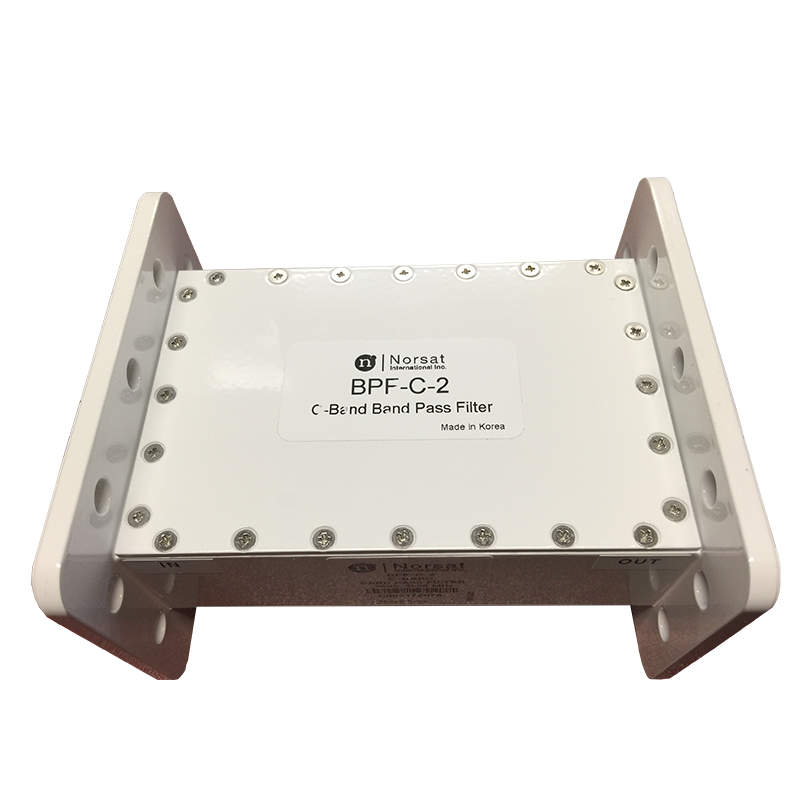

Norsat BPF-C-2 C-Band 5G Rejection Bandpass Filter

The Norsat BPF-C-2 is a C-Band 5G rejection bandpass filter designed to block terrestrial interference while preserving satellite signal quality. With steep rejection, low VSWR, and rugged IP67 housing, it is ideal for dependable outdoor SATCOM installations.

Band: C-Band

Input Frequency: 3.625 – 4.20 GHz
Rejection:

   ≥25 dB at 3.575 & 4.250 GHz

   ≥60 dB at 3.475 & 4.350 GHz

   ≥70 dB at 3.425 & 4.400 GHz
Group Delay Variation: ≤0.6 ns within 0.5 MHz
VSWR: 1.4:1 max
RF Input Connector: CPR-229G waveguide (grooved)
RF Output Connector: CPR-229F
IP Rating: IP67
Dimensions (L × W × H): 120 × 100 × 70 mm
Weight: 0.65 kg
Logistics: Packaged 220 × 140 × 120 mm; 1.02 kg
Country of Origin: Korea (Ex-Works Richmond, BC, Canada)
ECCN: EAR99; HS Code: 8517690000

BPF-C-2
Type
Bandpass Filters
Passband
3.625–4.2 GHz
Stopband Rejection
70-80 dB
