Norsat BPF-CN-2 C-Band 5G Rejection Bandpass Filter 3.625–4.2 GHz
$530.00
• Passband Frequency: 3.625 – 4.2 GHz
• Rejection:
≥25 dB at 3.575 GHz and 4.250 GHz
≥60 dB at 3.475 GHz and 4.350 GHz
≥70 dB at 3.425 GHz and 4.400 GHz
• Insertion Loss: 0.5 dB max.
• Country of Origin: China
Security policy
Delivery policy
Return policy

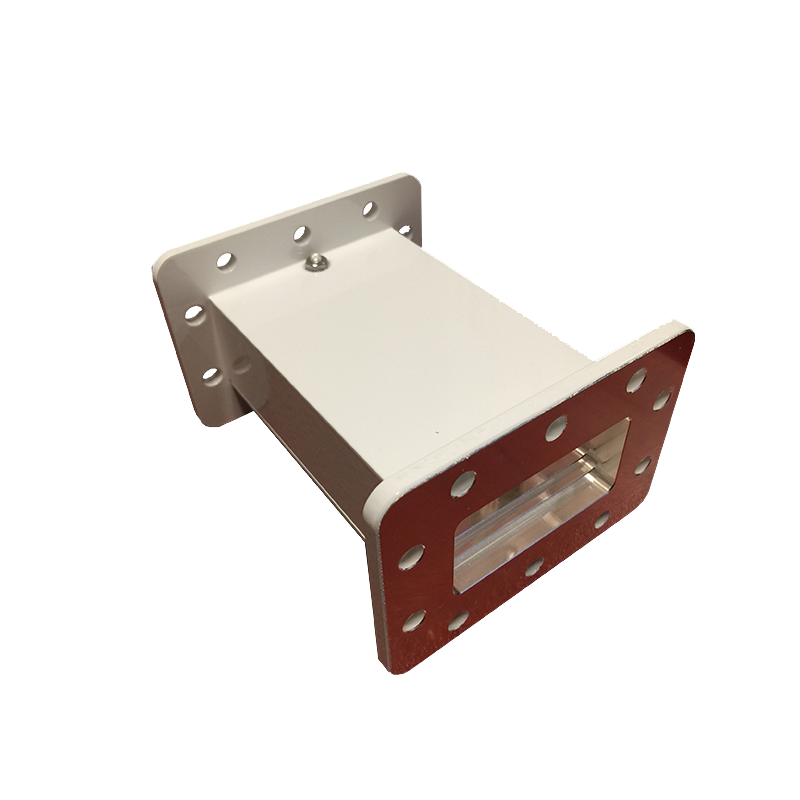

Norsat BPF-CN-2 C-Band 5G Rejection Bandpass Filter
The Norsat BPF-CN-2 is a C-Band 5G rejection bandpass filter designed to block terrestrial interference while maintaining excellent satellite signal integrity. It offers steep rejection performance, low VSWR, and rugged IP67 protection for reliable outdoor operation.
Band: C-Band
Input Frequency: 3.625 – 4.20 GHz
Rejection:
≥25 dB at 3.575 GHz and 4.250 GHz
≥60 dB at 3.475 GHz and 4.350 GHz
≥70 dB at 3.425 GHz and 4.400 GHz
Group Delay Variation: ≤0.6 ns within 0.5 MHz
VSWR: 1.4:1 max
RF Input Connector: CPR-229G waveguide (grooved)
RF Output Connector: CPR-229F
IP Rating: IP67
Dimensions (L × W × H): 120 × 100 × 70 mm
Weight: 0.65 kg
Logistics: Packaged 220 × 140 × 120 mm; 1.02 kg
Country of Origin: China (Ex-Works Richmond, BC, Canada)
ECCN: EAR99; HS Code: 8517690000
BPF-CN-2
- Type
- Bandpass Filters
- Passband
- 3.625–4.2 GHz
- Stopband Rejection
- 70-80 dB
