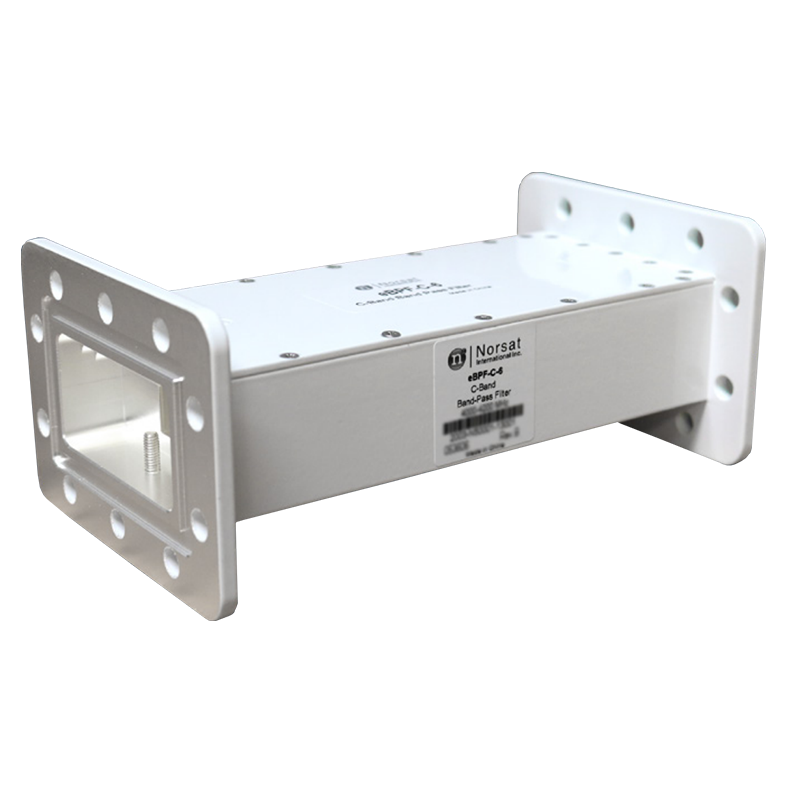

Norsat eBPF-CN-7 C-Band 5G Extreme Bandpass Filter 4.1–4.2 GHz
$1,000.00
• Passband Frequency: 4.1 – 4.2 GHz
• Rejection: 60 dB min at 4.082 GHz; 25 dB min at 4.230 GHz
• Insertion Loss: 1.4 dB max.
• Country of Origin: China
Security policy
Delivery policy
Return policy
Norsat eBPF-CN-7 C-Band 5G Rejection Extreme Bandpass Filter
The Norsat eBPF-CN-7 is a C-Band extreme 5G rejection bandpass filter engineered for satellite downlink protection. It provides a narrow 4.10–4.20 GHz passband, steep roll-off skirts, high stopband rejection, and low insertion loss, ensuring reliable signal integrity even in high-interference environments.
Band: C-Band
Passband Frequency: 4.10 – 4.20 GHz
Insertion Loss: ≤1.4 dB
Rejection: ≥60 dB at 4.082 GHz; ≥25 dB at 4.230 GHz
Group Delay Variation: ≤3.0 ns within 0.5 MHz
VSWR: 1.4:1 max
RF Input Connector: CPR-229G waveguide (grooved)
RF Output Connector: CPR-229F
IP Rating: IP67
Dimensions (L × W × H): 160 × 100 × 71 mm
Weight: 0.9 kg
Logistics: Packaged 270 × 140 × 115 mm; 1.3 kg
Country of Origin: China (Ex-Works Richmond, BC, Canada)
ECCN: EAR99; HS Code: 8517690000
eBPF-CN-7
- Type
- Bandpass Filters
- Passband
- 4.1–4.2 GHz
- Stopband Rejection
- 60-70 dB
Specific References
• Passband Frequency: 4.1 – 4.2 GHz
• Rejection: 60 dB min at 4.082 GHz; 25 dB min at 4.230 GHz
• Insertion Loss: 1.4 dB max.
• Country of Origin: China
