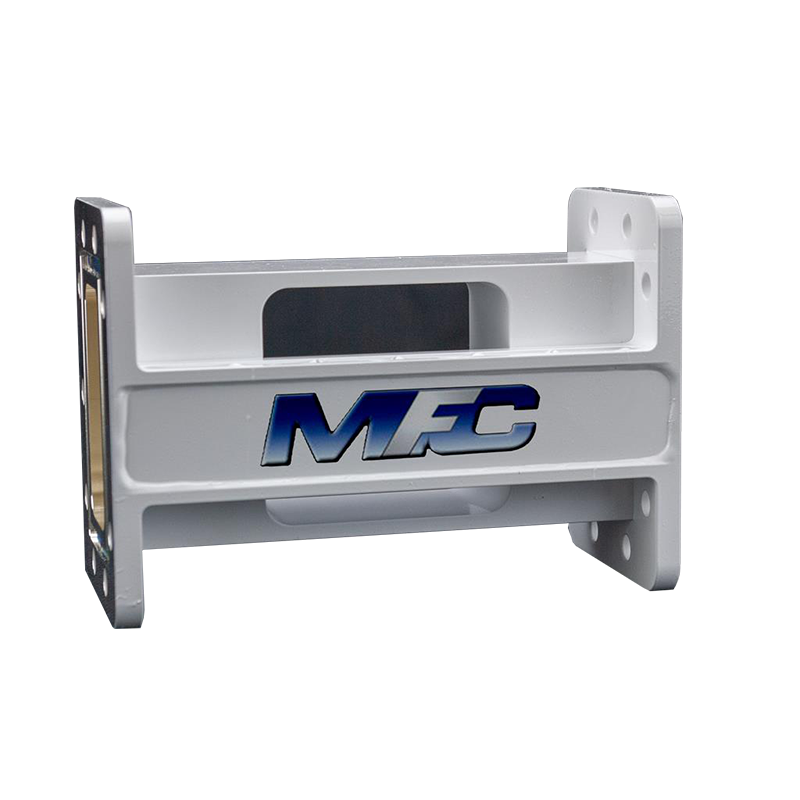

12086XR-1 C-Band Reject Filter | 3.7–4.2 GHz Rx | 80 dB Tx Rejection
The SMW 12086XR-1 is a high-performance C-band transmit reject filter that offers extremely low receive insertion loss (<0.06 dB) and outstanding transmit rejection of 80 dB from 5.925–6.425 GHz. Designed for SATCOM systems, it isolates uplink and downlink signals between the antenna and LNA in professional receive chains. Its WR-229 waveguide design and rugged chromate aluminum construction ensure durable performance in harsh environments.
Key Features:
Receive Band: 3.7–4.2 GHz
Transmit Rejection: 80 dB @ 5.925–6.425 GHz
Insertion Loss: 0.06 dB Typ.
VSWR: 1.25:1 max
Waveguide Size: WR-229 with standard grooved flanges
Construction: Dip-brazed aluminum with military-grade chromate finish
Application: C-band SATCOM receive chains, uplink/downlink isolation
12086XR-1
- Type
- Bandpass Filters
- Passband
- 3.7–4.2 GHz
- Stopband Rejection
- 70-80 dB
Specific References
C-Band Bandpass Filter
Passband: 3.7–4.2 GHz
