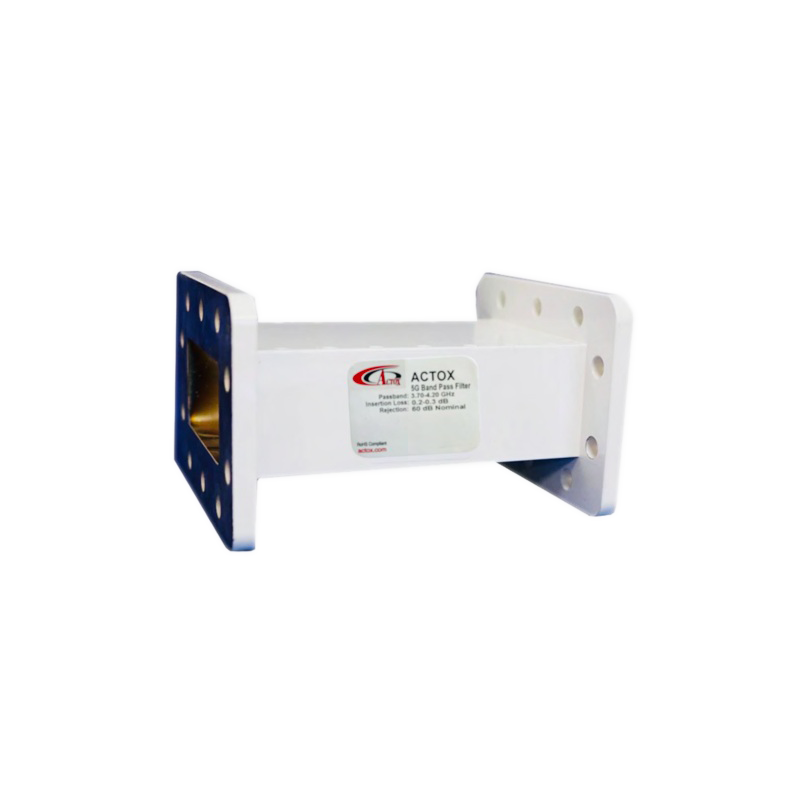

Actox AF2293742 C-Band BPF Extreme Bandpass Filter 3.7 – 4.2 GHz
• Passband Frequency: 3.7 – 4.2 GHz
• Rejection:
Below 3500 MHz > 68 dB
3500-3600 MHz > 60 dB
4400-4800 MHz > 60 dB
• Passband Return Loss: 20 dB
Security policy
Delivery policy
Return policy
Actox AF2293742 C-Band BPF Extreme Bandpass Filter
This filter can be easily installed between the feed and LNB. It rejects terrestrial interference in C-Band (5G, Radar and C-Band Transmitter). It is suitable for use with any C-Band LNBs.
Band: C-Band
Input Frequency: 3.70 – 4.20 GHz
Rejection:
>68 dB below 3500 MHz
>60 dB 3500 - 3600 MHz
>60 dB 4400 - 4800 MHz
Passband Insertion Loss: 0.2 - 0.3 dB
Passband Return Loss: 20 dB
Waveguide Flange: WR-229G (Input)
Waveguide Flange: WR-229F (Output)
Operating Temperature: up to +70°C
Dimensions (L × W × H): 146 × 99 × 70 mm
Weight: 0.59 kg
AF2293742
- Type
- Bandpass Filters
- Passband
- 3.7–4.2 GHz
- Stopband Rejection
- 70-80 dB
