Norsat 3000-100076 C-Band 5G Rejection LNB and Bandpass Filter 4.16–4.2 GHz

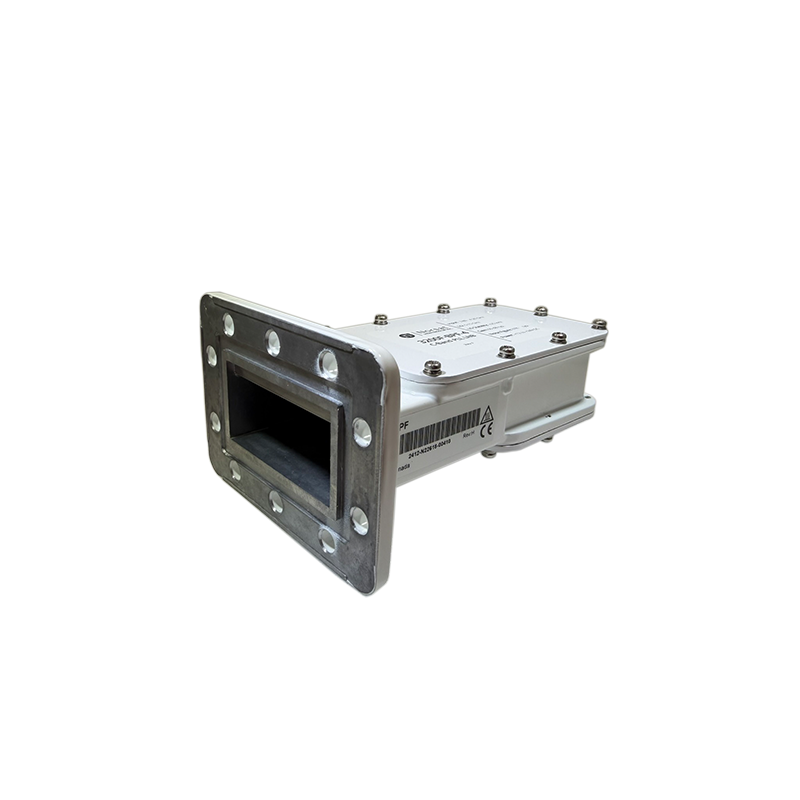

Norsat 3000-100076 C-Band 5G Rejection PLL LNB

The Norsat 3000-100076 is a high-performance C-band PLL LNB engineered for strong 5G interference rejection. It features a narrow 4.16–4.20 GHz input passband, 30K maximum noise temperature and ±25 kHz LO stability for reliable satellite signal reception in challenging RF environments.

Key Specifications:

• Input Frequency: 4.16–4.20 GHz

• Output Frequency: 950–990 MHz

• LO Frequency: 5.15 GHz

• LO Type: PLL

• LO Stability: ±25 kHz maximum

• Noise Temperature: 25K typ., 30K maximum

• Conversion Gain: 60 dB typ.

• Gain Range: 55–65 dB

• Gain Flatness: 2 dB p-p maximum

• 5G Band Rejection:

        ≥30 dB at 4.11 GHz

        ≥70 dB at 4.06 GHz

        ≥80 dB at 4.01 GHz

        ≥40 dB at 4.25 GHz

• Image Rejection: ≥70 dBc

• Output P1dB: ≥+10 dBm

• Input Flange: CPR229G with groove

• Output Connector: F-type, 75 ohm

• Power Requirement: +12 to +24 VDC

• Environmental Rating: IP67

• Operating Temperature: -40°C to +60°C

• Warranty: One year

Its high out-of-band rejection, low noise performance and rugged IP67 enclosure make the 3000-100076 ideal for professional C-band satellite installations affected by terrestrial 5G interference.
