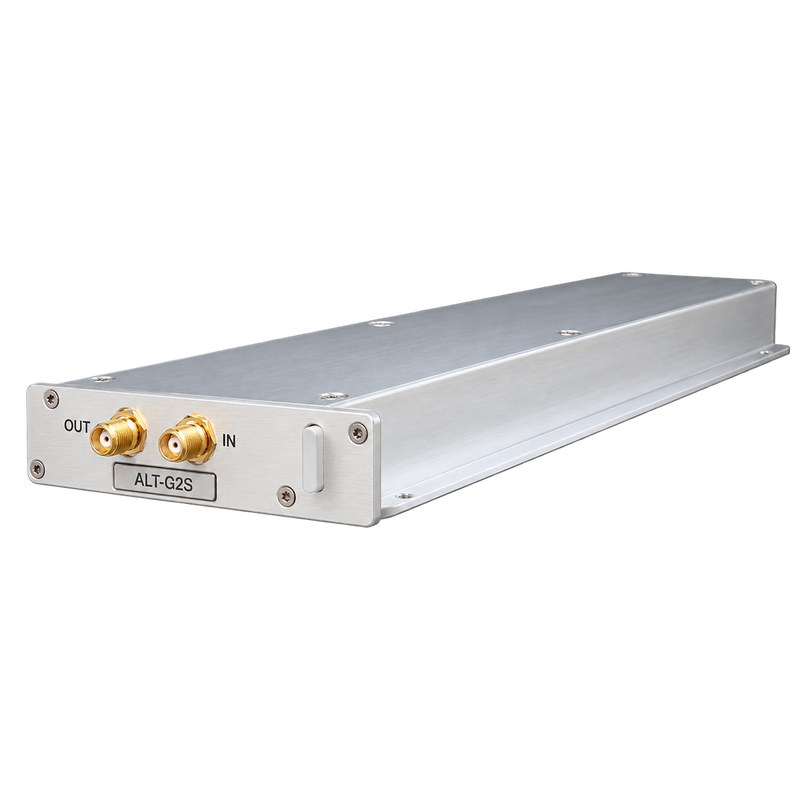

ETL Systems Alto ALT-G2S-KX-147 5–18 GHz Variable Gain Low Noise Amplifier Module

ETL Systems Alto ALT-G2S-KX-147 5–18 GHz Variable Gain Low Noise Amplifier Module

The ETL Systems Alto ALT-G2S-KX-147-K5K5 is a wideband, low noise RF amplifier module operating from 5–18 GHz. Designed for a compatible GENUS 2U chassis, it combines adjustable gain with high linearity for RF signal conditioning and level balancing.

The amplifier provides nominal gain adjustment from 0–26 dB in 1 dB steps. At maximum gain, it offers a noise figure of 3.5 dB typ. and an output third-order intercept point of +33 dBm typ. Its 50 Ω 2.92 mm female input and output connectors support microwave signal connections.

Each hot-swappable module occupies one chassis slot. Local and remote control are provided through the selected GENUS chassis, with supported interfaces including the front-panel touchscreen, Ethernet, SNMP, and HTTPS web access.

Optional 1+1 amplifier redundancy can be implemented with additional amplifier and switching hardware plus external cabling. Performance depends on the complete redundant configuration.

Model: ALT-G2S-KX-147-K5K5
Product Type: Variable gain low noise RF amplifier module
Frequency Range: 5–18 GHz
Chassis Compatibility: GENUS 2U; one slot
RF Connectors: 50 Ω; 2.92 mm female input and output
Gain Range: Nominal 0–26 dB; ±2.0 dB at minimum and maximum settings
Gain Step: 1 ±0.5 dB
Gain Flatness: ±2.0 dB full band; ±0.2 dB over any 36 MHz, in manual gain mode at zero slope
Noise Figure: 3.5 dB typ.; 4.5 dB maximum, at maximum gain
Output P1dB: +23 dBm typ.; +18 dBm minimum, over the full gain range
OIP3: +33 dBm typ.; +28 dBm minimum, at maximum gain
Input / Output Return Loss: 14 dB typ.; 10 dB minimum
Reverse Gain: Less than −60 dB typ.
MTBF: Greater than 150,000 hours
Operating Temperature: Module rating 0°C to +50°C with up to 8 modules; 0°C to +45°C with up to 16 modules, subject to chassis limits
Weight: Less than 0.35 kg typ.

Key Features

• Wideband microwave amplification from 5–18 GHz.

• Adjustable gain for RF signal-level balancing.

• Low noise figure and high output linearity.

• Compact, hot-swappable, single-slot module.

• Local and remote control through a compatible GENUS chassis.

• Optional 1+1 redundancy using additional hardware and external cabling.

• Indoor operation within the parent GENUS chassis.

This listing covers one ALT-G2S-KX-147-K5K5 amplifier module. The GENUS chassis, additional amplifier, redundancy switching hardware, and external cables are sold separately unless included in the quoted configuration. Specifications above apply to the individual amplifier configuration; complete 1+1 system performance differs. No LNB powering is provided.
