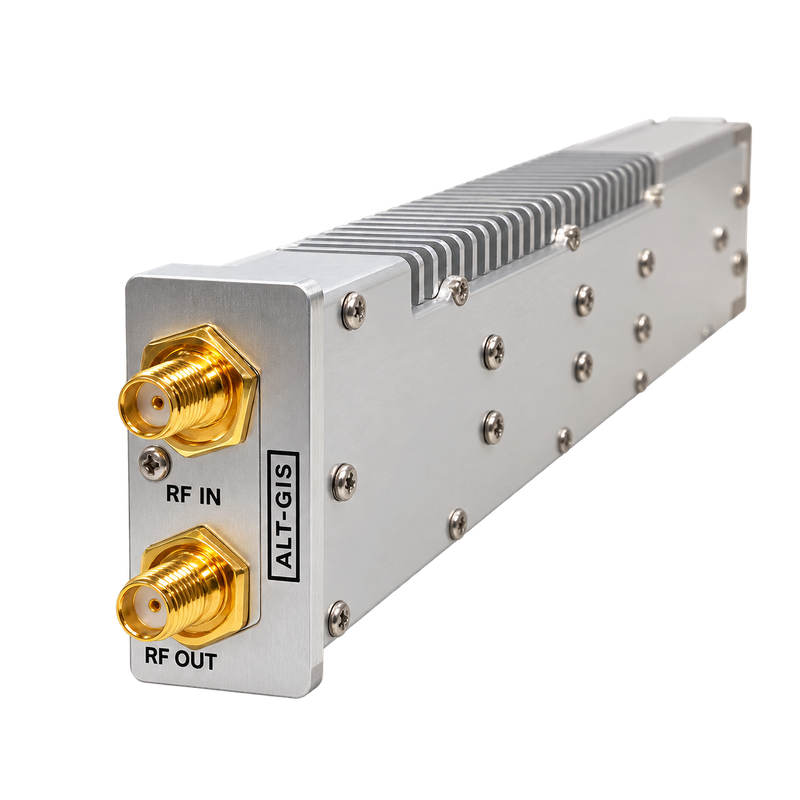

ETL Systems Alto ALT-G1S-L1-104 L-Band Variable Gain Amplifier Module 850–2150 MHz

ETL Systems Alto ALT-G1S-L1-104 L-Band Variable Gain Amplifier Module 850–2150 MHz

The ETL Systems Alto ALT-G1S-L1-104 is an L-band smart amplifier module operating from 850–2150 MHz. Designed for a compatible GENUS 1U chassis, it combines variable gain, adjustable slope, and high linearity for RF signal conditioning and level balancing.

The amplifier provides nominal gain adjustment from 0–28 dB, with fine 0.25 dB steps in manual gain mode. Its 0–8 dB slope control, pivoting at 2150 MHz, supports compensation for frequency-dependent signal loss. Manual gain and automatic output-level control modes provide flexibility for different signal requirements.

At maximum gain, the module offers a noise figure of 7 dB typ., an output 1 dB compression point of +23 dBm typ., and an output third-order intercept point of +32 dBm typ. The RF input and output use 50 Ω SMA connectors.

Each hot-swappable amplifier occupies one chassis slot. Local and remote control are provided through the selected GENUS chassis, with supported interfaces including the front-panel touchscreen, Ethernet, SNMP, and HTTPS web access.

Model: ALT-G1S-L1-104-XXXX
Product Type: L-band variable gain smart amplifier module
Frequency Range: 850–2150 MHz
Chassis Compatibility: GENUS 1U; one slot
RF Ports: 50 Ω SMA input and output
Gain Range: Nominal 0–28 dB; ±2.0 dB at minimum and maximum settings
Gain Step: 0.25 ±0.15 dB in manual gain mode
Slope Control: 0–8 dB; pivot point at 2150 MHz; steps of 1 ±0.25 dB
Gain Flatness: ±0.75 dB over 850–2150 MHz; ±0.2 dB over any 36 MHz, in manual gain mode at zero slope
Noise Figure: 7 dB typ.; 10 dB maximum, at maximum gain
Output P1dB: +23 dBm typ.; +20 dBm minimum, at maximum gain
OIP3: +32 dBm typ.; +28 dBm minimum, at maximum gain
Input / Output Return Loss: Input 18 dB typ., 16 dB minimum; output 16 dB typ., 14 dB minimum
MTBF: Greater than 150,000 hours per amplifier module
Operating Temperature: Module rating 0°C to +50°C with up to 8 modules; 0°C to +45°C with up to 16 modules, subject to chassis limits
Weight: Less than 0.35 kg typ.

Key Features

• L-band amplification for RF distribution and signal conditioning.

• Fine gain adjustment for signal-level balancing.

• Adjustable slope for frequency-response compensation.

• Manual gain and automatic output-level control modes.

• Compact, hot-swappable, single-slot module.

• Local and remote control through a compatible GENUS chassis.

• OIP2 of +44 dBm typ.; +40 dBm minimum.

This listing covers one ALT-G1S-L1-104 amplifier module. The GENUS chassis, RF cables, optional chassis reference source, and other accessories are sold separately unless included in the quoted configuration. No LNB powering is provided. The module requires a compatible parent GENUS chassis and is specified for indoor use. Confirm the complete ordering suffix when requesting a quotation.
