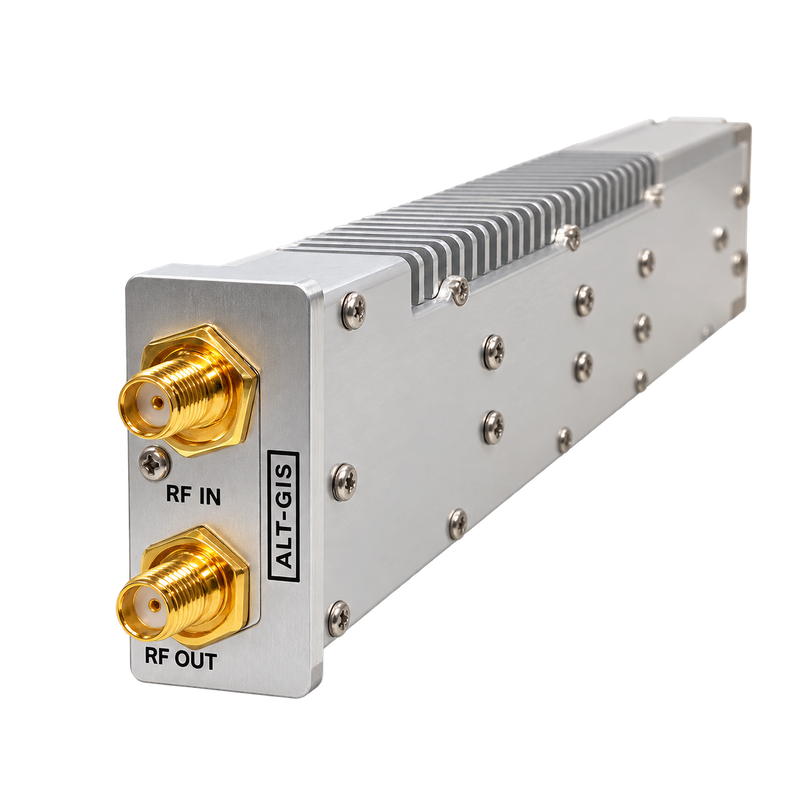

The ETL Systems Alto ALT-G1R-L1-105 is an L-band amplifier module designed for the GENUS 1U redundant chassis range. Operating from 850–2150 MHz, it combines low noise, high linearity, variable gain, and adjustable slope for RF signal conditioning in redundant amplifier systems.

The module supports 1:1 redundancy configurations using compatible switching hardware. With the SWF-G1R-SX-101 switch, the specified configuration provides nominal gain from −2 to +28 dB and 0–6 dB slope control. With the SWF-G1R-SX-114 switch, the specified gain range is −5 to +25 dB with 0–5 dB slope control.

Fine gain adjustment in nominal 0.25 dB steps supports signal-level balancing. Slope control pivots at 2150 MHz to help compensate for frequency-dependent signal loss. RF connections use 50 Ω SMA ports.

Each hot-swappable amplifier module occupies one chassis slot. Local and remote control are provided through the selected GENUS chassis, with supported interfaces including the front-panel touchscreen, Ethernet, SNMP, and HTTPS web access.

Model: ALT-G1R-L1-105
Product Type: L-band amplifier module for redundant configurations
Frequency Range: 850–2150 MHz
Chassis Compatibility: GENUS 1U redundant chassis range; one slot per amplifier module
RF Ports: 50 Ω SMA
Redundancy Configuration: 1:1 with compatible switching hardware
Gain Range: −2 to +28 dB with SWF-G1R-SX-101; −5 to +25 dB with SWF-G1R-SX-114; endpoint tolerance ±2.0 dB
Gain Step: 0.25 ±0.15 dB in manual gain mode
Slope Control: 0–6 dB with SWF-G1R-SX-101; 0–5 dB with SWF-G1R-SX-114; pivot point at 2150 MHz
Slope Step: 1 ±0.25 dB
Gain Flatness: ±0.75 dB full band with SWF-G1R-SX-101; ±0.8 dB with SWF-G1R-SX-114; ±0.25 dB over any 36 MHz for either configuration, in manual gain mode at zero slope
Noise Figure: 8 dB typ., 10 dB maximum with SWF-G1R-SX-101; 10 dB typ., 12 dB maximum with SWF-G1R-SX-114; at maximum gain
Output P1dB: +21 dBm typ., +18 dBm minimum with SWF-G1R-SX-101; +19 dBm typ., +16 dBm minimum with SWF-G1R-SX-114; at maximum gain
OIP3: +31 dBm typ., +28 dBm minimum with SWF-G1R-SX-101; +29 dBm typ., +26 dBm minimum with SWF-G1R-SX-114; at maximum gain
MTBF: Greater than 150,000 hours per amplifier module
Weight: Less than 0.35 kg typ.

Key Features

• Designed for L-band 1:1 redundant amplifier systems.

• Fine variable-gain adjustment for RF level balancing.

• Adjustable slope for frequency-response compensation.

• Compact, hot-swappable, single-slot amplifier module.

• Local and remote control through a compatible GENUS chassis.

• Module operating rating: 0°C to +50°C with up to 8 modules; 0°C to +45°C with up to 16 modules, subject to chassis limits.

• Indoor operation within the parent GENUS chassis.

This listing covers one ALT-G1R-L1-105 amplifier module. The GENUS chassis, additional amplifier module, redundancy switch, RF cables, and other accessories are sold separately unless included in the quoted configuration. Performance figures above apply to the stated amplifier-and-switch configurations. No LNB powering is provided. Specify the required redundancy switch and complete system configuration when requesting a quotation.
