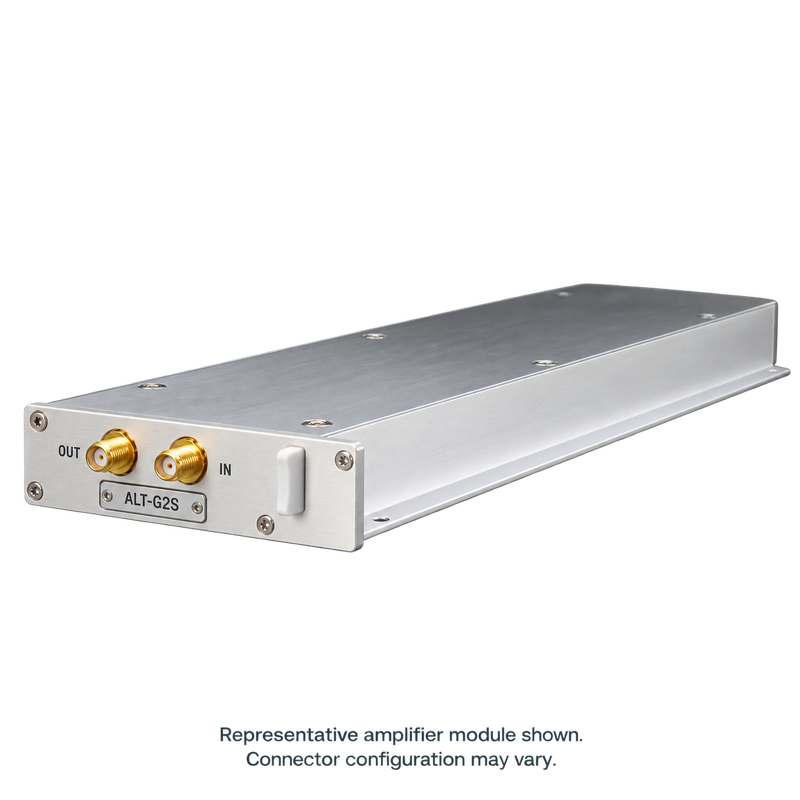

The ETL Systems Alto ALT-G2S-L1-130 is a high linearity L-band amplifier module operating from 850–2150 MHz. Designed for a compatible GENUS 2U chassis, it provides variable gain and adjustable slope for RF signal conditioning, level balancing, and frequency-response compensation.

The amplifier offers nominal gain adjustment from 15–45 dB in fine 0.25 dB steps. Slope control provides 0–8 dB adjustment with a pivot point at 2150 MHz. Manual gain and automatic output-level control modes support different signal-management requirements.

Three operating modes allow the amplifier’s performance to suit the application. Power Mode adjusts input attenuation to prioritize linearity as gain is reduced. Noise Mode adjusts output attenuation to prioritize noise figure, with reduced linearity at lower gain. Compromise Mode distributes attenuation equally between the input and output.

At maximum gain, the amplifier provides a noise figure of 4 dB typ. and an output third-order intercept point of +42 dBm typ. Each hot-swappable module occupies one slot in a compatible GENUS 2U chassis, with local and remote control through the selected chassis platform.

Model: ALT-G2S-L1-130-XXXX
Product Type: High linearity variable gain L-band amplifier module
Frequency Range: 850–2150 MHz
Chassis Compatibility: GENUS 2U; one slot
RF Connector Options: 50 Ω SMA or 50 Ω N-type
Gain Range: Nominal 15–45 dB; ±2.0 dB at minimum and maximum settings
Gain Step: 0.25 ±0.15 dB in manual gain mode
Slope Control: 0–8 dB; pivot point at 2150 MHz; steps of 1 ±0.5 dB
Gain Flatness: ±1.5 dB full band; ±0.25 dB over any 36 MHz, in manual gain mode at zero slope
Operating Modes: Power, Noise, and Compromise
Noise Figure: 4 dB typ.; 6 dB maximum, at maximum gain
Output P1dB: +32 dBm typ.; performance varies with gain, frequency, and operating mode.
OIP3 / OIP2: OIP3 +42 dBm typ., +39 dBm minimum; OIP2 +66 dBm typ., +60 dBm minimum; at maximum gain
Input / Output Return Loss: 18 dB typ.; 12 dB minimum
RF Output Detector: −20 to +30 dBm; ±3 dB accuracy
MTBF / Weight: Greater than 150,000 hours; less than 0.35 kg typ.

Key Features

• High linearity L-band amplification for RF distribution systems.

• Fine gain adjustment across a nominal 30 dB range.

• Adjustable slope for frequency-response compensation.

• Selectable modes to prioritize linearity, noise figure, or a balance of both.

• Compact, hot-swappable, single-slot module.

• Local and remote control through the compatible chassis, including touchscreen, Ethernet, SNMP, and HTTPS web access.

• Module operating rating: 0°C to +50°C with up to 8 modules; 0°C to +45°C with up to 16 modules, subject to chassis limits.

This listing covers one ALT-G2S-L1-130 amplifier module. The GENUS chassis, RF cables, and other accessories are sold separately unless included in the quoted configuration. No LNB powering is provided. Indoor operation requires a compatible parent GENUS chassis. Output compression performance varies with gain and operating mode; confirm the required operating point and connector configuration when requesting a quotation.
