ETL Systems Alto ALT-G2A-L1-250 L-Band AGC Amplifier 850–2150 MHz

ETL Systems Alto ALT-G2A-L1-250 L-Band AGC Amplifier 850–2150 MHz

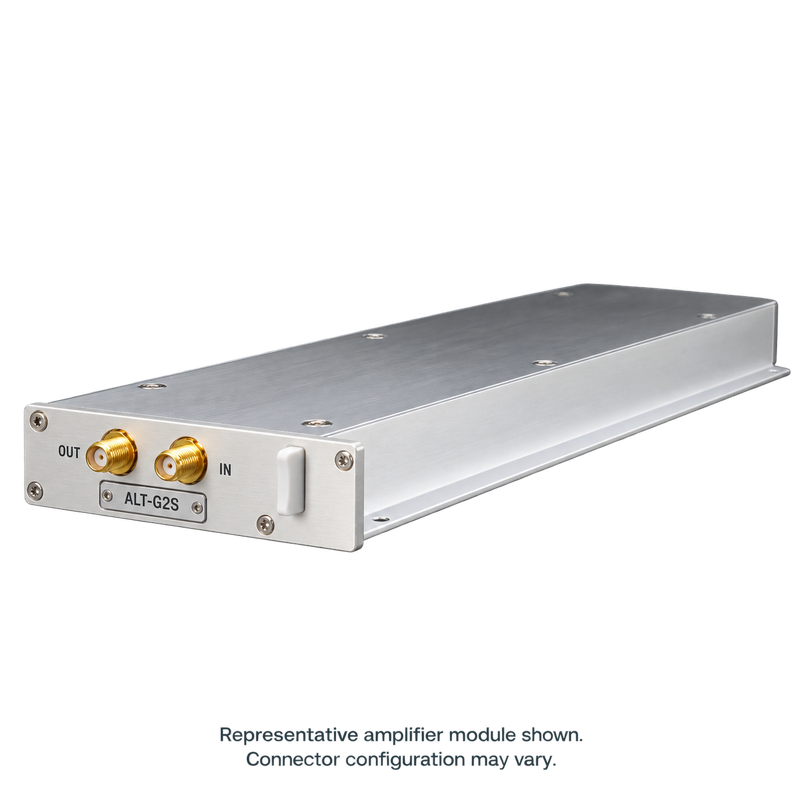

The ETL Systems Alto ALT-G2A-L1-250 is an L-band automatic gain control amplifier module operating from 850–2150 MHz. In AGC mode, it automatically adjusts gain to maintain a user-selected output level as the input level changes. Manual mode allows direct gain adjustment across a nominal 0–55 dB range.

AGC output levels are selectable from −20 to 0 dBm in 2 dB steps, with ±1 dB setting accuracy. Positive slope compensation from 0–6 dB is factory settable, with a pivot point at 2150 MHz. AGC rise and decay times are also factory settable to suit the application.

The hot-swappable module occupies one slot in a compatible GENUS 2U chassis. Local and remote monitoring and control are provided through the selected chassis, supporting convenient adjustment and status checks in satellite communications and RF distribution systems.

Model: ALT-G2A-L1-250; ordering suffix depends on configuration
Product Type: L-band AGC amplifier module
Frequency Range: 850–2150 MHz
Chassis Compatibility: GENUS 2U; one slot per module
RF Ports: 50Ω SMA or 50Ω N-type
Operating Modes: Automatic gain control and manual gain control
Manual Gain Range: Nominal 0–55 dB; ±1.5 dB at minimum and maximum settings
Manual Gain Step Size: 1 ±0.25 dB
AGC Output Level: −20 to 0 dBm; 2 dB steps; ±1 dB setting accuracy
AGC Rise / Decay Time: Each 15 ±10 ms at factory default; factory settable
Slope Compensation: 0–6 dB; factory settable in 1 ±0.5 dB steps; pivot at 2150 MHz
Gain Flatness: ±1.5 dB full band; ±0.25 dB over any 36 MHz; manual mode at zero slope
Noise Figure: 9 dB at maximum gain; 17 dB at 30 dB gain; 35 dB at minimum gain
Output P1dB / OIP3: P1dB +17.5 dBm typ., +14.5 dBm minimum over the full gain range; OIP3 +30 dBm at maximum gain
Input / Output Return Loss: 18 dB typ.; 12 dB minimum
MTBF / Weight: Greater than 150,000 hours; less than 0.35 kg typ.

Key Features

• Automatic output-level regulation for changing RF input levels.

• Manual gain adjustment across a nominal 55 dB range.

• Factory-set positive slope compensation and AGC response times.

• Optional finer AGC output-level steps.

• Hot-swappable, single-slot amplifier module.

• Chassis-based local and remote control, with module temperature and DC bias monitoring.

• Module operating rating: 0°C to +50°C with up to 8 modules, or 0°C to +45°C with up to 16 modules, subject to chassis limits.

This listing covers one amplifier module. The compatible GENUS chassis, RF cables, and other accessories are sold separately unless included in the quoted configuration. No LNB powering is provided. Published amplifier performance is for standalone operation; confirm in-chassis performance and the required connector suffix when requesting a quotation. AGC input-level limits depend on the selected output level. Gain extension up to 70 dB may reduce performance and requires configuration confirmation.
