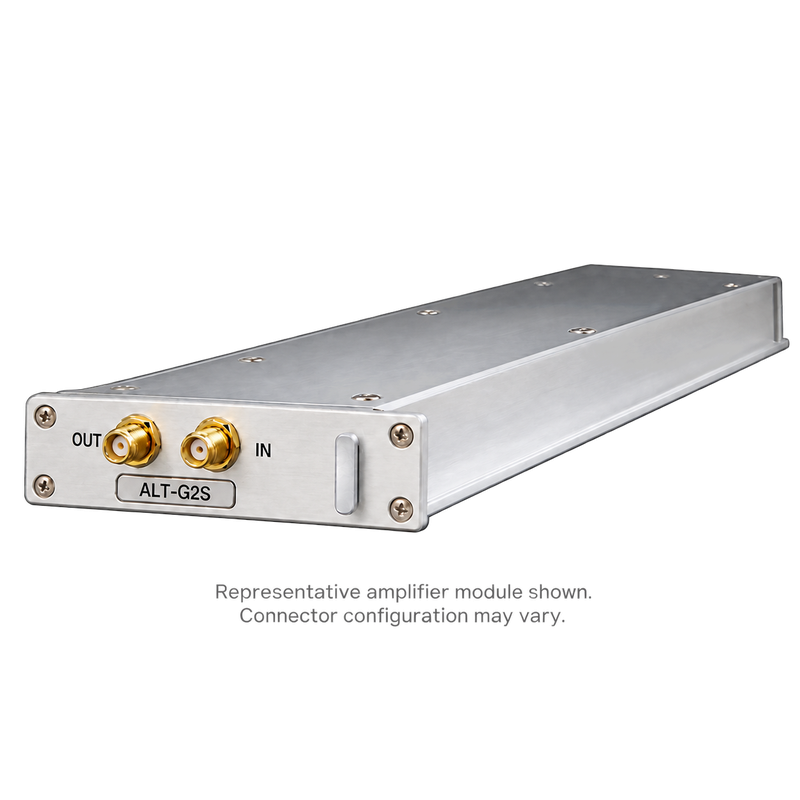

The ETL Systems Alto ALT-G2S-L1-144 is an L-band smart amplifier module operating from 950–2150 MHz. It provides variable gain and positive slope compensation for signal-level adjustment and cable-loss compensation in satellite communications and RF distribution systems.

Gain is adjustable across a nominal 0–24 dB range in 0.5 dB steps. The specified gain endpoints apply at 2150 MHz with a 2 dB slope setting. Positive slope compensation provides a standing 2 dB slope with up to 7 dB additional adjustment, using a pivot point at 2150 MHz.

The module supports user-selectable 18 V LNB powering at up to 500 mA per channel and 10 MHz reference injection through a compatible GENUS chassis. Available RF interfaces include 50Ω or 75Ω BNC connectors.

Each hot-swappable amplifier occupies one slot in a compatible GENUS 2U chassis. Local and remote monitoring and control are provided through the selected chassis platform.

Model: ALT-G2S-L1-144; ordering suffix depends on configuration
Product Type: L-band smart variable gain amplifier module
Frequency Range: 950–2150 MHz
Chassis Compatibility: GENUS 2U; one slot per module
RF Connector Options: 50Ω BNC or 75Ω BNC
Gain Range: Nominal 0–24 dB; ±2 dB at minimum and maximum settings, at 2150 MHz and 2 dB slope
Gain Step Size: 0.5 ±0.25 dB in manual gain mode
Slope Compensation: Standing 2 dB slope plus 0–7 dB adjustment; pivot at 2150 MHz
Slope Step Size: 1 ±0.5 dB
Gain Ripple: ±1 dB full band; ±0.3 dB over any 36 MHz; at 2 dB slope with the linear slope component removed
Noise Figure: Less than 7.5 dB at maximum gain with 2 dB or 9 dB slope
OIP3 / OIP2: OIP3 +30 dBm typ., +25 dBm minimum; OIP2 +39 dBm typ., +35 dBm minimum; at maximum gain
Input / Output Return Loss: 15 dB typ.; 10 dB minimum
LNB Power: User-selectable 18 V, up to 500 mA per channel
10 MHz Reference: Injection via compatible GENUS chassis; insertion loss 0 ±1.6 dB
MTBF / Weight: Greater than 150,000 hours; less than 0.35 kg typ.

Key Features

• Variable gain for L-band signal-level balancing.

• Positive slope compensation for frequency-dependent cable loss.

• Selectable LNB power and chassis-based 10 MHz reference injection.

• Choice of 50Ω or 75Ω BNC interfaces.

• Hot-swappable, single-slot amplifier module.

• Local touchscreen and remote control through the compatible GENUS chassis.

• Module operating rating: 0°C to +50°C with up to 8 modules, or 0°C to +45°C with up to 16 modules, subject to chassis limits.

This listing covers one amplifier module. The compatible GENUS chassis, reference source, RF cables, and other accessories are sold separately unless included in the quoted configuration. Published amplifier performance is for standalone operation and measured at room temperature. Confirm the connector impedance, ordering suffix, slope requirements, and in-chassis performance when requesting a quotation. Indoor use within a compatible parent GENUS chassis.
