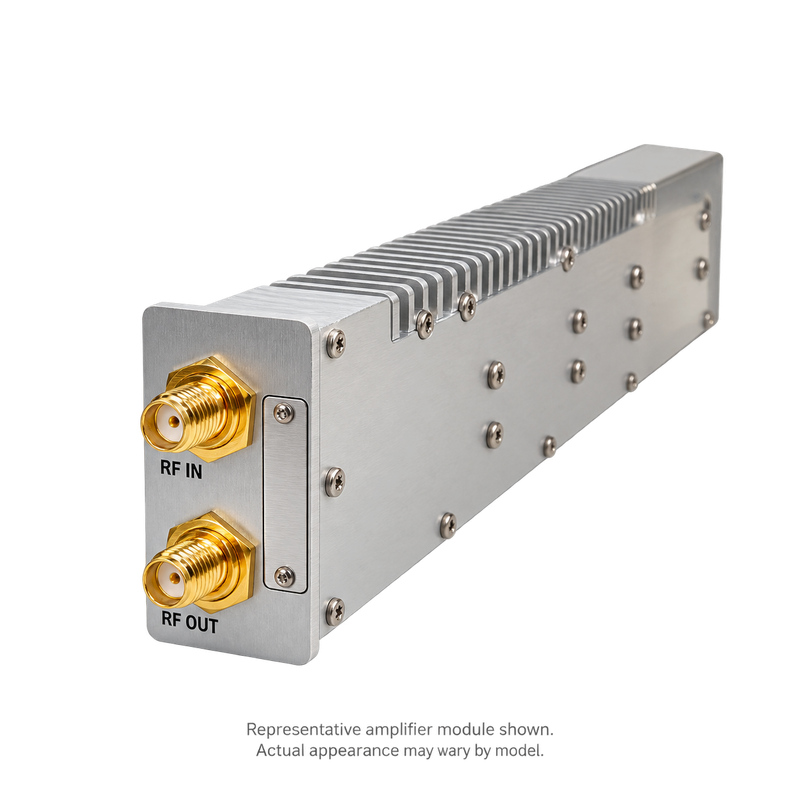

The ETL Systems Alto ALT-G1R-S3-103 is an extended L-band redundant amplifier module operating from 850–2450 MHz. Designed for a compatible GENUS 1U redundancy chassis, it provides adjustable gain, low noise, and high linearity for satellite communications and RF distribution systems.

The module supports 1:1, 2+1, and 4+2 redundancy when combined with the appropriate ETL switch hardware and amplifier modules. Gain range and RF performance depend on the selected configuration. This model does not provide adjustable slope control.

In the specified 1:1 configuration with the SWF-G1R-SX-101 switch, nominal gain is adjustable from −7 to +42 dB in 0.25 dB steps. At maximum gain, this configuration provides a noise figure of 5 dB typ., output P1dB of +19 dBm typ., and OIP3 of +31 dBm typ.

Each hot-swappable amplifier module occupies one chassis slot. Local touchscreen and remote monitoring and control are provided through the selected GENUS chassis.

RF performance below applies to the 1:1 configuration with SWF-G1R-SX-101.

Model: ALT-G1R-S3-103
Product Type: Extended L-band amplifier module for redundant systems
Frequency Range: 850–2450 MHz
Chassis Compatibility: GENUS 1U; one slot per amplifier module
RF Ports: 50Ω SMA
Redundancy Options: 1:1, 2+1, or 4+2 with appropriate switch hardware and amplifier modules
Specified Configuration: 1:1 with SWF-G1R-SX-101
Gain Range: Nominal −7 to +42 dB; ±2 dB at minimum and maximum settings
Gain Step Size: 0.25 ±0.15 dB in manual gain mode
Slope Control: Not available
Gain Flatness: ±1 dB full band; ±0.3 dB over any 36 MHz; in manual gain mode
Noise Figure: 5 dB typ.; 6 dB maximum, at maximum gain
Output P1dB: +19 dBm typ.; +16 dBm minimum, at maximum gain
OIP3 / OIP2: OIP3 +31 dBm typ., +28 dBm minimum at maximum gain; OIP2 +44 dBm typ., +40 dBm minimum
Input / Output Return Loss: 16 dB typ.; 12 dB minimum
MTBF / Weight: Greater than 150,000 hours per amplifier module; less than 0.35 kg typ.

Alternative Redundant Configurations

Gain endpoints have ±2 dB tolerance. Other RF specifications also vary by configuration. Slope control is unavailable in all three configurations.

Key Features

• Extended L-band coverage from 850–2450 MHz.

• Supports multiple redundant system arrangements.

• Fine gain adjustment across a nominal 49 dB range.

• Low noise and high linearity at maximum gain.

• Hot-swappable, single-slot amplifier module.

• Local and remote control through the compatible GENUS chassis.

• Module operating rating: 0°C to +50°C with up to 8 modules, or 0°C to +45°C with up to 16 modules, subject to chassis limits.

This listing covers one ALT-G1R-S3-103 amplifier module. The GENUS chassis, additional amplifier modules, redundancy switch, RF cables, and other accessories are sold separately unless included in the quoted configuration. No LNB powering is provided. Indoor operation requires a compatible parent GENUS chassis. Confirm the required redundancy arrangement and configuration-specific RF performance when requesting a quotation.
