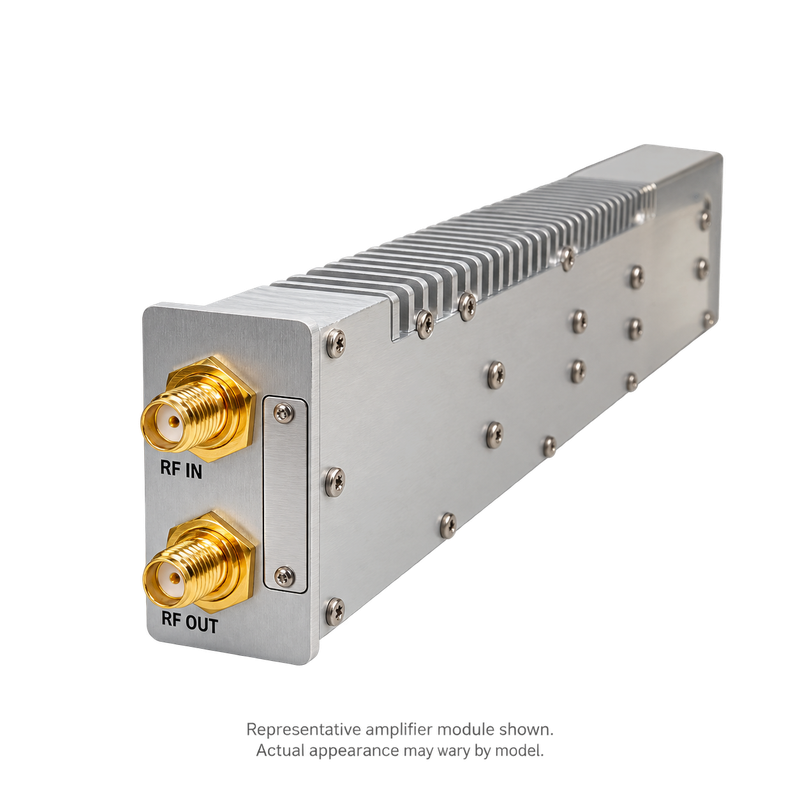

ETL Systems Alto ALT-G1R-S6-111 S-Band Redundant Variable Gain Amplifier 850–3150 MHz

ETL Systems Alto ALT-G1R-S6-111 S-Band Redundant Variable Gain Amplifier 850–3150 MHz

The ETL Systems Alto ALT-G1R-S6-111 is an S-band redundant amplifier module operating from 850–3150 MHz. Designed for a compatible GENUS 1U chassis, it provides low noise, high linearity, adjustable gain, and positive slope compensation for satellite communications and RF distribution systems.

The published RF table specifies a nominal −4 to +45 dB gain range with 0.25 dB adjustment steps. Slope control provides 0–10 dB compensation with a pivot point at 3150 MHz, supporting correction of frequency-dependent cable loss.

At maximum gain, published performance includes a noise figure of 2.5 dB typ., output P1dB of +23 dBm typ., and OIP3 of +35 dBm typ. Gain flatness is ±2 dB across the full frequency range and ±0.2 dB over any 36 MHz in manual gain mode at zero slope.

Each hot-swappable amplifier occupies one slot in a compatible GENUS 1U chassis. The chassis platform supports redundant system arrangements, including 1+1, 2+1, and 4+2, with the appropriate amplifier modules and switching hardware. Local and remote monitoring and control are provided through the selected chassis.

Specifications

Values follow the supplied V0.1 datasheet’s RF table, headed “1:1 Redundant Amplifier Module.” Confirm the complete amplifier-and-switch configuration and resulting system performance when requesting a quotation.

Model: ALT-G1R-S6-111
Product Type: S-band redundant variable gain amplifier module
Frequency Range: 850–3150 MHz
Chassis Compatibility: GENUS 1U; one slot per amplifier module
Redundancy Arrangements: Chassis supports 1+1, 2+1, and 4+2; configuration confirmation required
Gain Range: Nominal −4 to +45 dB; ±2 dB at minimum and maximum settings
Gain Step Size: 0.25 ±0.15 dB in manual gain mode
Slope Control: 0–10 dB; pivot at 3150 MHz; steps of 1 ±0.25 dB
Gain Flatness: ±2 dB full band; ±0.2 dB over any 36 MHz; manual gain mode at zero slope
Noise Figure: 2.5 dB typ.; 3.5 dB maximum, at maximum gain
Output P1dB: +23 dBm typ.; +20 dBm minimum, at maximum gain
OIP3: +35 dBm typ.; +32 dBm minimum, at maximum gain
OIP2: +45 dBm typ.; +41 dBm minimum
Input / Output Return Loss: 16 dB typ.; 14 dB minimum
Isolation: 60 dB typ.; 50 dB minimum, with amplifier modules set to equal gain
MTBF / Weight: Greater than 150,000 hours per amplifier module; less than 0.35 kg typ.

Key Features

• Wide RF coverage from 850–3150 MHz.

• Nominal 49 dB gain adjustment range with fine 0.25 dB steps.

• Up to 10 dB positive slope compensation for cable-loss correction.

• Low noise and high linearity at maximum gain.

• Hot-swappable, single-slot module for compatible GENUS 1U chassis.

• Local touchscreen and remote monitoring and control through the selected chassis.

• Module operating rating: 0°C to +50°C with up to 8 modules, or 0°C to +45°C with up to 16 modules, subject to chassis limits.

This listing covers one ALT-G1R-S6-111 amplifier module. The GENUS chassis, additional amplifier modules, redundancy switch, RF cables, and other accessories are sold separately unless included in the quoted configuration. No LNB powering is provided. Indoor operation requires a compatible parent GENUS chassis. Confirm RF connector details, switching hardware, and configuration-specific performance when requesting a quotation.
