ETL Systems Alto ALT-G2A-S3-253 S-Band AGC Amplifier 2200–2300 MHz

ETL Systems Alto ALT-G2A-S3-253 S-Band AGC Amplifier 2200–2300 MHz

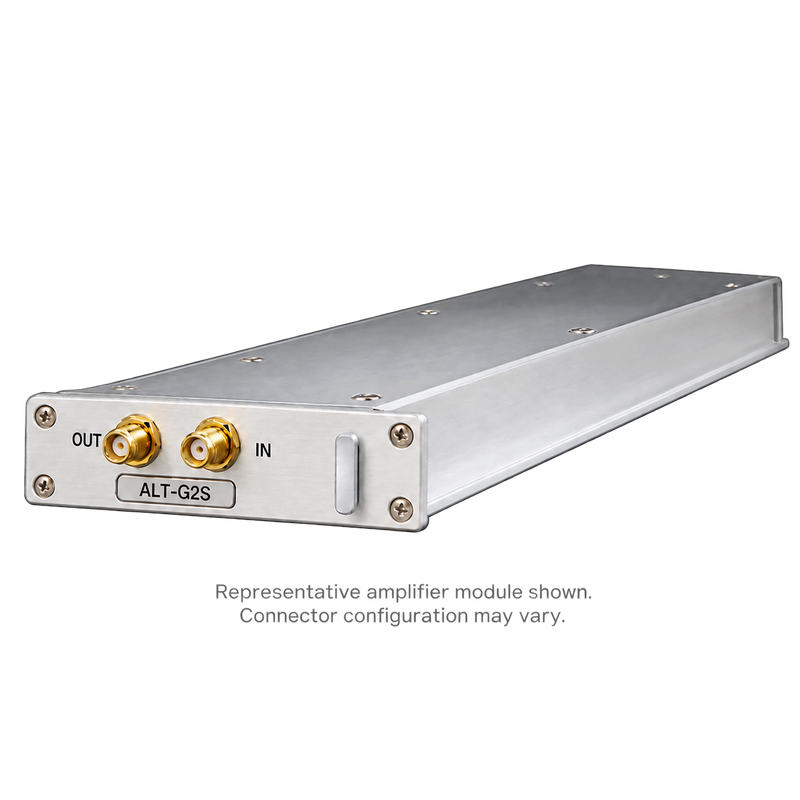

The ETL Systems Alto ALT-G2A-S3-253 is an S-band automatic gain control amplifier module operating from 2200–2300 MHz. In AGC mode, it automatically adjusts gain to maintain a user-selected output level as the RF input level changes. Manual mode allows direct gain adjustment across a nominal 5–65 dB range.

AGC output levels are selectable from −25 to 0 dBm in 1 dB steps, with ±1 dB setting accuracy. The supported input-level range depends on the selected output level. AGC rise and decay times are factory settable to suit the application.

The module also provides 0–0.75 dB slope compensation with a pivot point at 2200 MHz. Specified gain flatness is ±0.25 dB in manual gain mode at zero slope. Output P1dB is +17.5 dBm typ. across the specified gain range, while OIP3 is +30 dBm at maximum gain.

Each hot-swappable amplifier occupies one slot in a compatible GENUS 2U chassis. Local and remote monitoring and control are provided through the selected chassis, including module temperature and DC bias monitoring.

Specifications

Model: ALT-G2A-S3-253; ordering suffix depends on configuration
Product Type: S-band AGC amplifier module
Frequency Range: 2200–2300 MHz
Chassis Compatibility: GENUS 2U; one slot per module
RF Connector Options: 50Ω SMA or N-type
Operating Modes: Automatic gain control and manual gain control
Manual Gain Range: Nominal 5–65 dB; ±1.5 dB at minimum and maximum settings
Manual Gain Step Size: 1 ±0.25 dB
AGC Output Level: −25 to 0 dBm; 1 dB steps; ±1 dB setting accuracy
Slope Control: 0–0.75 dB; pivot at 2200 MHz; step size 0.75 ±0.3 dB
Gain Flatness: ±0.25 dB; manual gain mode at zero slope
Noise Figure: 9 dB at 65 dB gain; 13 dB at 60 dB gain; 22 dB at 30 dB gain; 38 dB at 5 dB gain
Output P1dB / OIP3: P1dB +17.5 dBm typ., +14.5 dBm minimum over the specified gain range; OIP3 +30 dBm at maximum gain
Input / Output Return Loss: 18 dB typ.; 12 dB minimum
Phase Performance: AM/PM conversion 0.1°/dB at 0 dBm output; phase deviation less than 5° peak-to-peak after removal of the linear phase component
MTBF / Weight: Greater than 150,000 hours per module; less than 0.35 kg typ.

AGC Input-Level Ranges

Key Features

• S-band coverage from 2200–2300 MHz.

• Automatic output-level regulation for changing RF input levels.

• Nominal 60 dB manual gain adjustment range.

• Factory-settable AGC rise and decay times.

• Fine slope compensation for the specified 100 MHz bandwidth.

• Hot-swappable, single-slot module with chassis-based monitoring and control.

• Module operating rating: 0°C to +50°C with up to 16 modules, subject to the selected chassis’s operating limits.

This listing covers one amplifier module. The compatible GENUS chassis, RF cables, and other accessories are sold separately unless included in the quoted configuration. Published RF performance is for standalone amplifier operation; confirm performance in the selected chassis configuration. Gain extension up to 70 dB may reduce performance, including linearity, and requires configuration confirmation. Indoor use only. Specify connector options and required AGC response times when requesting a quotation.
