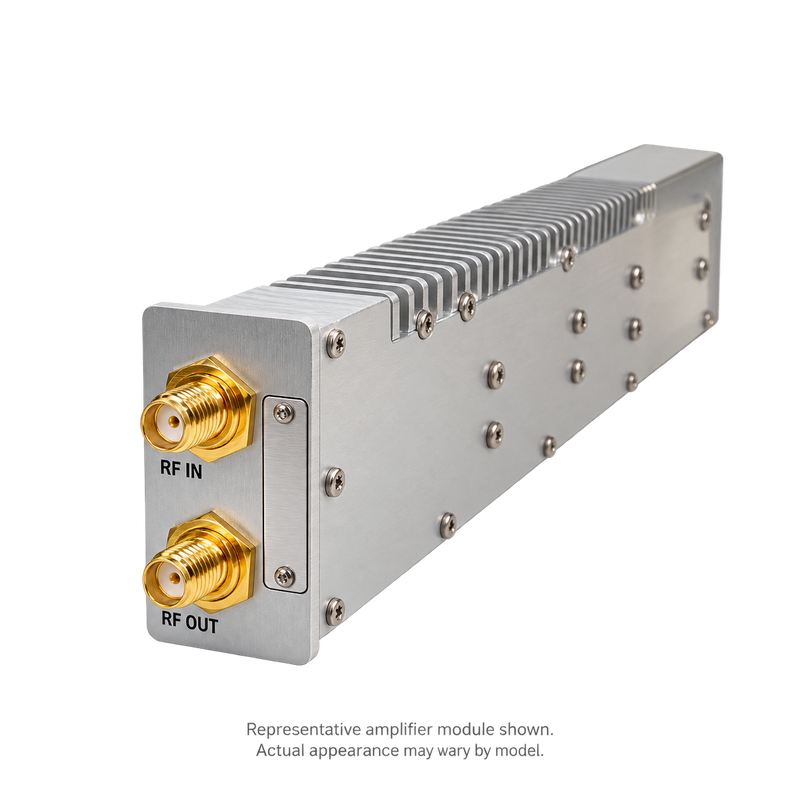

The ETL Systems Alto ALT-G1S-C5-114-S5S5 is a broadband C-band amplifier module operating from 850–4200 MHz. It combines low noise, high linearity, and adjustable gain for satellite communications and RF distribution applications.

Manual gain adjustment provides a nominal 0–38 dB range in 0.25 dB steps. At maximum gain, the module delivers a noise figure of 6 dB typ., output P1dB of +16 dBm typ., and OIP3 of +26 dBm typ.

Each hot-swappable module occupies one slot in a compatible GENUS 1U chassis. Local touchscreen and remote monitoring and control are provided through the selected chassis, allowing the amplifier to be integrated with other compatible RF modules.

Specifications

RF performance below is quoted for the standalone amplifier module. Installed system performance depends on the chassis configuration.

Model: ALT-G1S-C5-114-S5S5
Product Type: Broadband C-band amplifier module
Frequency Range: 850–4200 MHz
Chassis Compatibility: GENUS 1U; one slot per module
RF Ports: 50Ω SMA
Gain Range: Nominal 0–38 dB; ±2 dB at minimum and maximum settings
Gain Step Size: 0.25 ±0.15 dB in manual gain mode
Full-Band Gain Flatness: ±1.75 dB
Sub-Band Gain Flatness: ±1.25 dB over 850–2450 MHz or 3400–4200 MHz
36 MHz Gain Flatness: ±0.25 dB over any 36 MHz
Noise Figure: 6 dB typ.; 9 dB maximum, at maximum gain
Output P1dB: +16 dBm typ.; +13 dBm minimum, at maximum gain
OIP3 / OIP2: OIP3 +26 dBm typ., +23 dBm minimum at maximum gain; OIP2 +38 dBm typ., +35 dBm minimum
Input / Output Return Loss: 18 dB typ.; 12 dB minimum
Isolation: 60 dB typ.; 50 dB minimum, with amplifiers set to equal gain
MTBF / Weight: Greater than 150,000 hours per module; less than 0.35 kg typ.

Gain-flatness specifications apply in manual gain mode at zero slope.

Key Features

• Broadband coverage from 850–4200 MHz.

• Fine manual gain adjustment across a nominal 38 dB range.

• Low-noise amplification with high linearity.

• Hot-swappable, single-slot module.

• Local and remote monitoring and control through the compatible GENUS chassis.

• Supports chassis configurations with up to 16 amplifier modules.

• Module operating rating: 0°C to +50°C with up to 8 modules, or 0°C to +45°C with up to 16 modules, subject to chassis limits.

This listing covers one ALT-G1S-C5-114-S5S5 amplifier module. The GENUS chassis, RF cables, and other accessories are sold separately unless included in the quoted configuration. No LNB powering is provided. Indoor operation requires a compatible parent GENUS chassis. Confirm installed RF performance and chassis capacity when requesting a quotation.
