ETL Systems RF Amplifiers – Fixed Gain, Variable Gain & AGC

ETL Systems RF Amplifiers – Fixed Gain, Variable Gain & AGC

ETL Systems offers RF amplifiers for signal amplification and level adjustment across satellite communications and RF distribution systems. The wider portfolio spans frequency ranges from DC to 24 GHz, with individual models designed for specific bands and applications.

Available amplifier types include fixed gain (GAB), variable gain (VGA), automatic gain control (AGC), and SMART VGA. The attached overview lists fixed and variable gain models operating from 850–2150 MHz, plus AGC models covering 50–2500 MHz.

Connector options include SMA, N-type, BNC, and F-type, with 50Ω or 75Ω configurations depending on the model. Rectangular and compact tubular housings are available across the range; tubular designs use in-line powering.

Select the required amplifier by frequency range, gain requirements, input and output signal levels, connector type, impedance, and power supply.

Specifications
Product Type: RF amplifier range
Amplifier Options: Fixed gain, variable gain, AGC, and SMART VGA
Portfolio Frequency Coverage: DC–24 GHz across different products
Listed GAB / VGA Frequency Range: 850–2150 MHz
Listed AGC Frequency Range: 50–2500 MHz
Listed Fixed Gain Options: 10, 15, 20, 25, or 30 dB, depending on model
Listed GAB Output P1dB: +11 to +18 dBm typ., depending on model
Listed VGA Output P1dB: +15 or +18 dBm typ., depending on model
RF Connector Options: SMA, N-type, BNC, or F-type, depending on model
Impedance Options: 50Ω or 75Ω, depending on model
Housing Options: Rectangular or compact tubular designs across the range
DC Supply: Model dependent; listed GAB/VGA options include 8–18 V, 8–24 V, or +24 V
Tubular Amplifier Powering: In-line powered

Key Features

• Multiple amplifier types for different signal-level requirements.

• Fixed gain options for applications requiring a defined gain.

• Variable gain models for adjustable RF signal levels.

• AGC models for maintaining a specified output level within the supported input range.

• Multiple connector, impedance, and housing options.

• Products covering IF, L, S, C, X, Ku, wideband, and broadband applications across the wider portfolio.

Available Models

Fixed Gain (GAB) Amplifiers — 850–2150 MHz

ETL Systems fixed gain amplifiers are available in the following models. Gain, connector options, noise figure, and output performance vary by model.

A-GABL1-3110, A-GABL1-3111, A-GABL1-3112, A-GABL1-3113, A-GABL1-3114, A-GABL1-3131, A-GABL1-3132, A-GABL1-3133, A-GABL1-3134, A-GABL1-3140, A-GABL1-3141, A-GABL1-3143, A-GABL1-3207, A-GABL1-3208, A-GABL1-3210, A-GABL1-3213, A-GABL1-3214, A-GABL1-3217, A-GABL1-3219, and A-GABL1-3220.

Variable Gain (VGA) Amplifiers — 850–2150 MHz

ETL Systems variable gain amplifier models include the following A-VGAL1 and ODU products. Confirm gain adjustment range, connector configuration, and DC supply requirements for the selected model.

A-VGAL1-3011, A-VGAL1-3014, A-VGAL1-3016, A-VGAL1-3018, A-VGAL1-3019, A-VGAL1-3025, A-VGAL1-3026, A-VGAL1-3027, A-VGAL1-3028, A-VGAL1-3029, A-VGAL1-3030, A-VGAL1-3053, A-VGAL1-310002, ODU-3014, and ODU-3053.

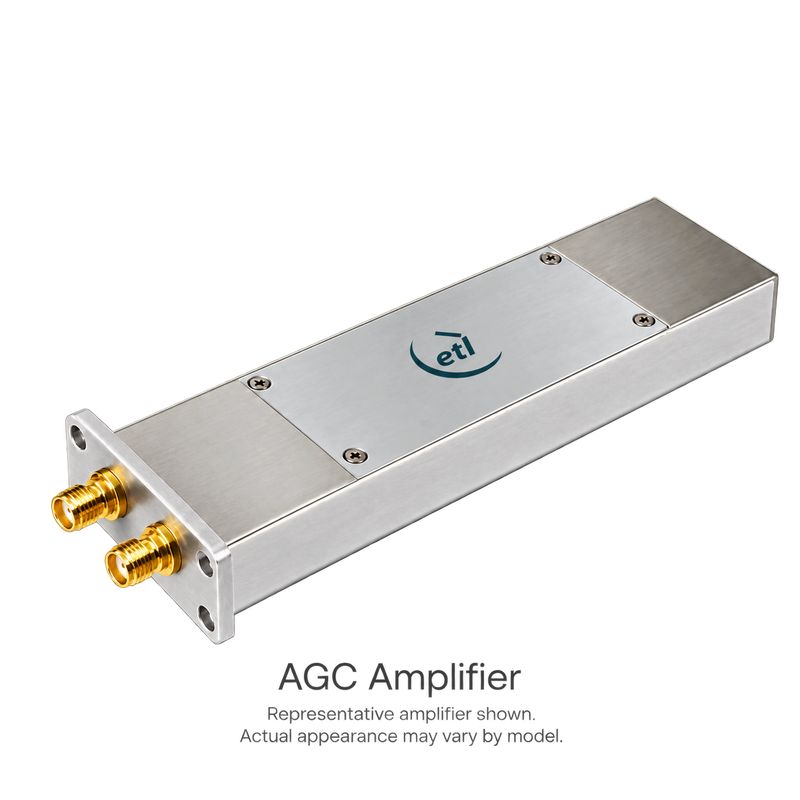

Automatic Gain Control (AGC) Amplifiers — 50–2500 MHz

A-AGCB3-3503, A-AGCB3-3504, A-AGCB3-3505

SMART VGA Amplifiers

SMART VGA amplifiers are also illustrated in the product-range overview. Specific SMART VGA model numbers and specifications are not listed in this datasheet; please contact Esatcom with your requirements.

When requesting a quotation, specify the model number, connector type, impedance, required quantity, and power supply requirements. Connector availability and RF performance depend on the selected configuration.

This is a product-range overview. Frequency coverage, gain, linearity, noise figure, powering, and connector availability depend on the selected model. No single amplifier covers the entire DC–24 GHz portfolio range. Listed GAB/VGA RF specifications apply to 50Ω SMA versions unless otherwise specified. Confirm the complete model and connector configuration when requesting a quotation.
