ETL Systems Piranha PRN-G1S-BS2-003 BUC DC & 10 MHz Injector 24 V

ETL Systems Piranha PRN-G1S-BS2-003 BUC DC & 10 MHz Injector 24 V

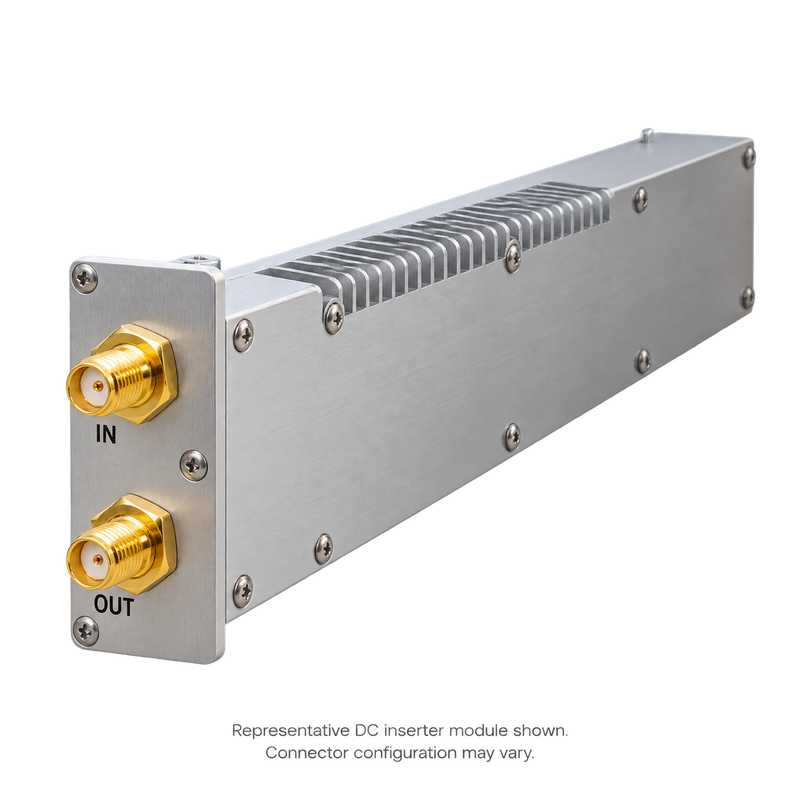

The ETL Systems Piranha PRN-G1S-BS2-003 is a BUC DC power inserter module for satellite communications systems. Operating from 850–2450 MHz, it combines the RF signal with selectable 24 V DC power at port 1 to supply a compatible block upconverter or similar equipment.

The DC output can be switched off or set to 24 V, with a maximum load current of 2.8 A. Overcurrent protection provides current-limited trip and restart. When installed in a compatible GENUS chassis fitted with the required 10 MHz reference card, the module also supports switchable 10 MHz injection onto port 1.

BUC current and RF input power monitoring support user-settable upper and lower alarm limits through the parent chassis. Local control is available through the chassis HMI, if fitted, with remote monitoring and control through the chassis Ethernet interface.

Each hot-swappable module occupies one slot. Connector configurations include 50Ω SMA, 50Ω BNC, 75Ω BNC, and 75Ω F-type.

Specifications

Model: PRN-G1S-BS2-003
Product Type: BUC DC power inserter / bias-T with 10 MHz injection capability
Frequency Range: 850–2450 MHz
Signal Paths: Single path
Chassis Compatibility: GENUS 1U series or PRN-G1x chassis; one slot
RF Connector Options: 50Ω SMA, 50Ω BNC, 75Ω BNC, or 75Ω F-type
Insertion Loss: Less than 1.5 dB across the full band
Flatness: ±0.40 dB full band; ±0.15 dB over any 36 MHz
Return Loss: 17 dB typ.; 14 dB minimum
Module-to-Module Isolation: 80 dB minimum
BUC DC Output: Off or 24 V at port 1; ±5% tolerance typ.; 0.75% maximum ripple
Maximum BUC Load: 2.8 A; current-limited overcurrent trip and restart
10 MHz Injection: Switchable on/off at port 1 with compatible chassis reference hardware
RF Input Power / Detection: +20 dBm absolute total maximum input; −40 to −10 dBm total-power indication range
Power Supply / Consumption: Chassis-supplied dual redundant 12 V DC bus; 95 W full load, 3 W no load, maximum steady-state consumption
Dimensions / Weight / MTBF: 256 × 45 × 22 mm maximum; 0.18 kg; greater than 250,000 hours

Connector Configurations

• PRN-G1S-BS2-003-S5S5: 50Ω SMA

• PRN-G1S-BS2-003-B5B5: 50Ω BNC

• PRN-G1S-BS2-003-B7B7: 75Ω BNC

• PRN-G1S-BS2-003-F7F7: 75Ω F-type

Key Features

• Combines RF and 24 V DC power for a compatible BUC.

• Switchable DC output with up to 2.8 A load capacity.

• Optional chassis-supplied 10 MHz reference injection.

• BUC current and RF input power monitoring.

• User-settable upper and lower current and RF power alarm limits.

• Hot-swappable, single-slot machined aluminium module.

• Local and remote control through the compatible parent chassis.

This listing covers one PRN-G1S-BS2-003 module in the selected connector configuration. The parent chassis, 10 MHz reference card, BUC, RF cables, and other accessories are sold separately unless included in the quoted configuration. RF power detection is for indication only. Specifications apply to 50Ω connectors unless otherwise stated. Confirm BUC voltage, current, reference requirements, and chassis power capacity when requesting a quotation.
