ETL Systems Piranha PRN-G1S-LS2-101 LNB DC & 10 MHz Injector 13/18 V

ETL Systems Piranha PRN-G1S-LS2-101 LNB DC & 10 MHz Injector 13/18 V

The ETL Systems Piranha PRN-G1S-LS2-101 is an LNB DC power inserter module for satellite communications and RF distribution systems. Operating from 850–2500 MHz, it supplies selectable 13 V or 18 V DC at port 1 to power a compatible LNB or similar equipment.

The DC output can be switched off, and a selectable 22 kHz tone supports compatible LNB control functions. Maximum LNB load current is 500 mA, with current-limited overcurrent trip and restart protection. When installed in a compatible GENUS chassis fitted with the required 10 MHz reference card, the module also provides switchable 10 MHz injection onto port 1.

LNB current and RF input power monitoring support user-settable upper and lower alarm limits. Voltage, tone, and reference selection are controlled through the parent chassis, with local HMI control where fitted and remote access through the chassis Ethernet interface. An LNB DC active LED on the module face provides a local status indication.

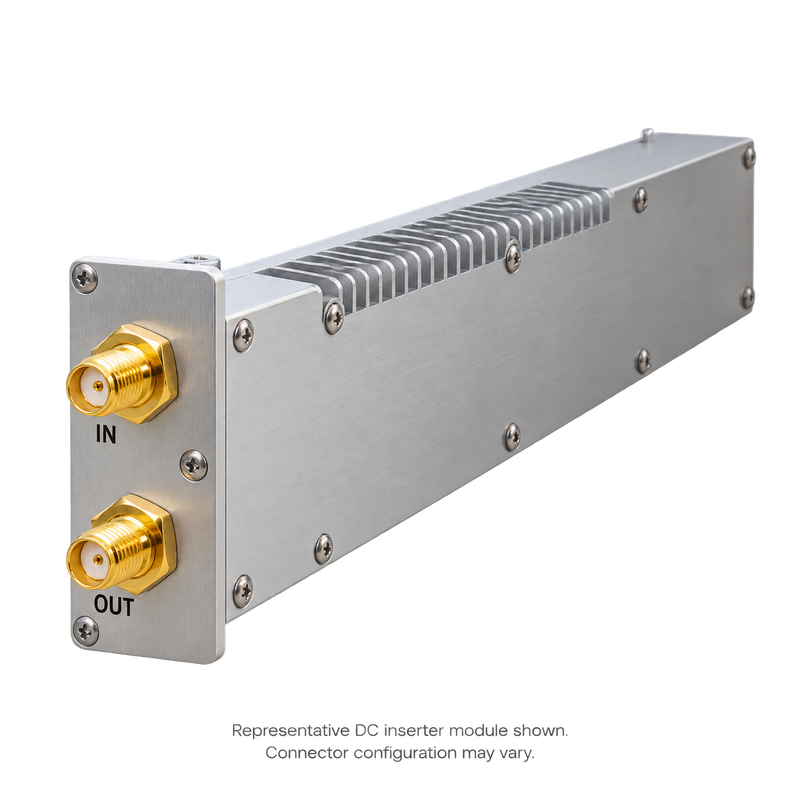

Each hot-swappable module occupies one slot. Available RF connector configurations include 50Ω SMA, 50Ω BNC, 75Ω BNC, and 75Ω F-type.

Specifications

Model: PRN-G1S-LS2-101
Product Type: LNB DC power inserter / bias-T with 10 MHz injection capability
Frequency Range: 850–2500 MHz
Signal Paths: Single path
Chassis Compatibility: GENUS 1U series or PRN-G1x chassis; one slot
RF Connector Options: 50Ω SMA, 50Ω BNC, 75Ω BNC, or 75Ω F-type
Insertion Loss: Less than 1.5 dB across the full band
Flatness: ±0.40 dB full band; ±0.15 dB over any 36 MHz
Return Loss: 17 dB typ.; 14 dB minimum
Module-to-Module Isolation: 80 dB minimum
LNB DC Output: Off, 13 V, or 18 V at port 1; ±5% tolerance typ.
LNB Load / Tone: Up to 500 mA maximum; current-limited overcurrent trip and restart; switchable 22 kHz tone
10 MHz Injection: Switchable on/off at port 1 with compatible chassis reference hardware
RF Input Power / Detection: +20 dBm absolute total maximum input; −45 to 0 dBm total-power indication range
Power Supply / Consumption: Chassis-supplied dual redundant 12 V DC bus; 12 W full load, 2 W no load, maximum steady-state consumption
Dimensions / Weight / MTBF: 255 × 45 × 20 mm maximum; 0.2 kg; greater than 250,000 hours

Connector Configurations

• PRN-G1S-LS2-101-S5S5: 50Ω SMA

• PRN-G1S-LS2-101-B5B5: 50Ω BNC

• PRN-G1S-LS2-101-B7B7: 75Ω BNC

• PRN-G1S-LS2-101-F7F7: 75Ω F-type

Key Features

• Selectable 13 V or 18 V DC power for a compatible LNB.

• Up to 500 mA LNB load capacity.

• Switchable 22 kHz tone.

• Optional chassis-supplied 10 MHz reference injection.

• LNB current and RF input power monitoring with user-settable alarms.

• LNB DC active LED for local status indication.

• Hot-swappable, single-slot machined aluminium module.

• Local and remote control through the compatible parent chassis.

This listing covers one PRN-G1S-LS2-101 module in the selected connector configuration. The parent chassis, 10 MHz reference card, LNB, RF cables, and other accessories are sold separately unless included in the quoted configuration. RF power detection is for indication only. Specifications apply to 50Ω connectors unless otherwise stated. Confirm LNB voltage, current, tone and reference requirements, and chassis power capacity when requesting a quotation.
