ETL Systems MUXL1P-4100 L-Band & 10 MHz Multiplexer 850–2150 MHz

ETL Systems MUXL1P-4100 L-Band & 10 MHz Multiplexer 850–2150 MHz

The ETL Systems MUXL1P-4100 is an L-band multiplexer for satellite communications and RF signal distribution. It combines an 850–2150 MHz RF signal and a 10 MHz reference onto a common connection, or separates them into dedicated L-band and reference connections.

The common port carries both L-band and 10 MHz signals. The separate L-band port carries the RF signal, while the reference port passes 10 MHz. The datasheet diagram shows DC blocking at all three ports.

Mean L-band insertion loss is no more than 0.4 dB for the listed 50Ω versions or 0.5 dB for the 75Ω F-type version. Mean 10 MHz insertion loss is no more than 0.2 dB or 0.3 dB, respectively.

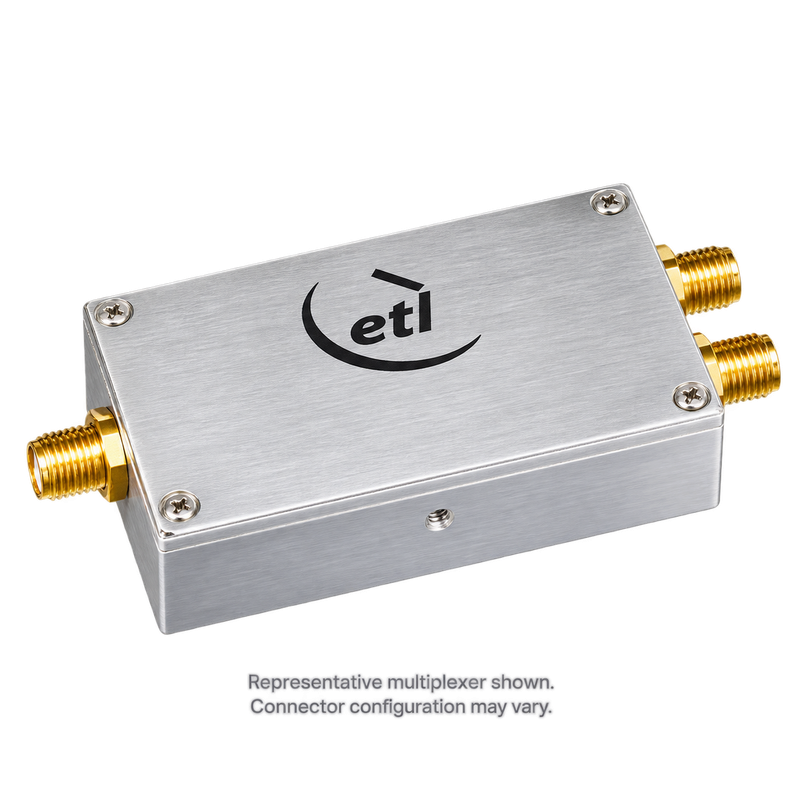

A rugged, compact enclosure supports tapped screw and through-hole mounting. Available configurations include 50Ω SMA, 50Ω N-type, 50Ω BNC, and 75Ω F-type connectors.

Specifications

Model: MUXL1P-4100
Product Type: L-band and 10 MHz multiplexer / diplexer
Frequency Range: 850–2150 MHz L-band path
Reference Frequency: 10 MHz
Port Configuration: Common, L-band, and 10 MHz reference
DC Path: DC blocked at all three ports, as shown in the datasheet diagram
RF Connector Options: 50Ω SMA, 50Ω N-type, 50Ω BNC, or 75Ω F-type
Mean L-Band Insertion Loss: ≤0.4 dB for 50Ω versions; ≤0.5 dB for 75Ω F-type
L-Band Flatness: ±0.1 dB for SMA and N-type; ±0.2 dB for BNC and F-type
Mean 10 MHz Insertion Loss: ≤0.2 dB for 50Ω versions; ≤0.3 dB for 75Ω F-type
Isolation: 25 dB typ. for 50Ω versions; 20 dB typ. for 75Ω F-type
Maximum RF Input Power: 5 W total RF power
Maximum DC Voltage: 24 V; an operating limit, not a DC power output
Housing Dimensions: 76.10 × 50.40 × 18.80 mm, excluding connector projections
Operating / Storage Temperature: −20°C to +55°C / −20°C to +85°C
Environment: Indoor use; 85% maximum non-condensing humidity; 10,000 ft maximum altitude

Connector Configurations

• MUXL1P-4100-S5S5S5: 50Ω SMA

• MUXL1P-4100-N5N5N5: 50Ω N-type

• MUXL1P-4100-B5B5B5: 50Ω BNC

• MUXL1P-4100-F7F7F7: 75Ω F-type

Key Features

• Combines or separates L-band RF and a 10 MHz reference.

• Common signal connection reduces separate cable requirements.

• Low insertion loss on both signal paths.

• Four connector configurations for different system interfaces.

• Compact, rugged enclosure.

• Tapped screw and through-hole mounting options.

• Wide operating temperature range for indoor installations.

This listing covers one MUXL1P-4100 multiplexer in the selected connector configuration. Reference sources, RF equipment, cables, and mounting accessories are sold separately unless included in the quoted configuration. The unit routes an externally supplied 10 MHz signal; it does not generate a reference or provide DC power injection. RF performance depends on connector configuration. Confirm impedance, connector type, signal levels, and installation requirements when requesting a quotation.
