ETL Systems ODU-4100 IP67 L-Band & 10 MHz Multiplexer 850–2150 MHz

ETL Systems ODU-4100 IP67 L-Band & 10 MHz Multiplexer 850–2150 MHz

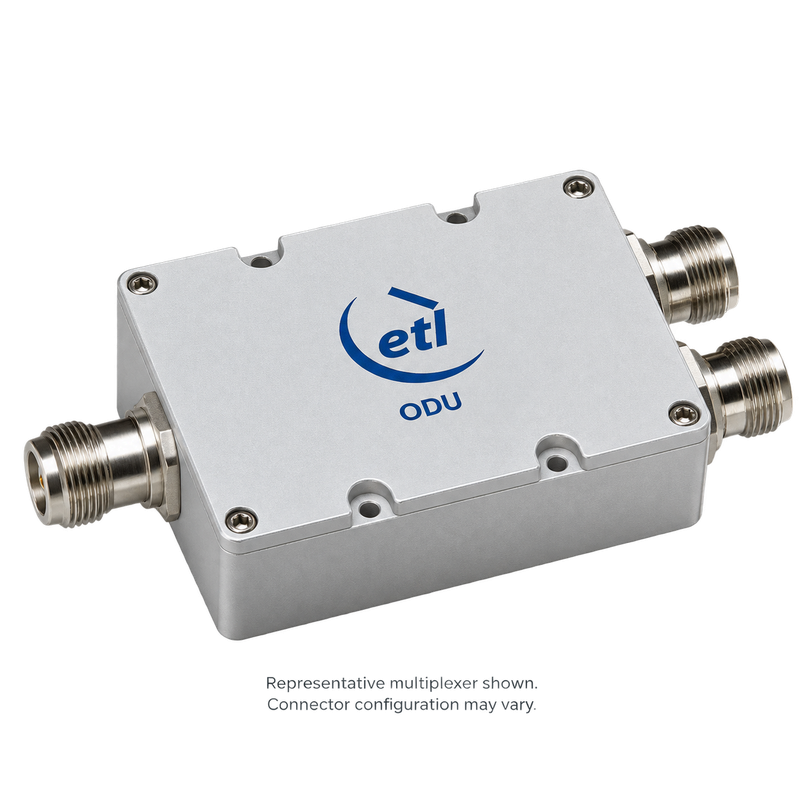

The ETL Systems ODU-4100 combines an 850–2150 MHz L-band RF signal and a 10 MHz reference onto a common connection, or separates them into dedicated RF and reference connections. Its compact IP67-rated enclosure supports outdoor satellite communications and RF signal distribution installations.

The common port carries both L-band and 10 MHz signals. Separate ports provide the L-band RF path and the 10 MHz reference path. The datasheet diagram shows DC blocking at all three ports.

Mean insertion loss is no more than 0.5 dB on the L-band path and 0.2 dB on the 10 MHz path. L-band flatness is ±0.1 dB, with 25 dB isolation. Available configurations provide 50Ω SMA or 50Ω N-type connectors.

The rugged enclosure supports through-hole mounting and operation from −40°C to +85°C.

Specifications

Model: ODU-4100
Product Type: IP67 L-band and 10 MHz multiplexer / diplexer
Frequency Range: 850–2150 MHz L-band path
Reference Frequency: 10 MHz
Port Configuration: Common, L-band, and 10 MHz reference
DC Path: DC blocked at all three ports, as shown in the datasheet diagram
RF Connector Options: 50Ω SMA or 50Ω N-type
Mean L-Band Insertion Loss: ≤0.5 dB
L-Band Flatness: ±0.1 dB
Common / L-Band Port Return Loss: 20 / 26 dB typ.; 14 dB minimum for both
Mean 10 MHz Insertion Loss / Isolation: ≤0.2 dB / 25 dB
Maximum RF Input Power: +37 dBm (5 W) as splitter; +27 dBm (500 mW) as combiner, into a matched load with 20 dB return loss
Maximum DC Voltage: 24 V on any RF port; an operating limit, not a DC power output
Housing Dimensions: 76.10 × 63.00 × 23.50 mm, excluding connector projections
Operating / Storage Temperature: −40°C to +85°C / −50°C to +100°C
Environment: Indoor/outdoor; IP67-rated enclosure; 100% maximum non-condensing humidity; altitude 12,000 ft operational, 40,000 ft survival

Connector Configurations

• ODU-4100-S5S5S5: 50Ω SMA

• ODU-4100-N5N5N5: 50Ω N-type

Key Features

• Combines or separates L-band RF and a 10 MHz reference.

• Common connection reduces separate signal cable requirements.

• Low insertion loss on both signal paths.

• IP67-rated enclosure for outdoor installations.

• SMA and N-type connector configurations.

• Compact housing with through-hole mounting.

• Wide operating temperature range.

This listing covers one ODU-4100 multiplexer in the selected connector configuration. Reference sources, RF equipment, cables, and mounting accessories are sold separately unless included in the quoted configuration. The unit routes an externally supplied 10 MHz signal; it does not generate a reference or provide DC power injection. Confirm connector selection and installation sealing requirements when requesting a quotation.
