Quintech AMP21501FK000 700-2150 MHz Adjustable L-Band Line Amplifier

Quintech AMP21501FK000 700-2150 MHz Adjustable L-Band Line Amplifier

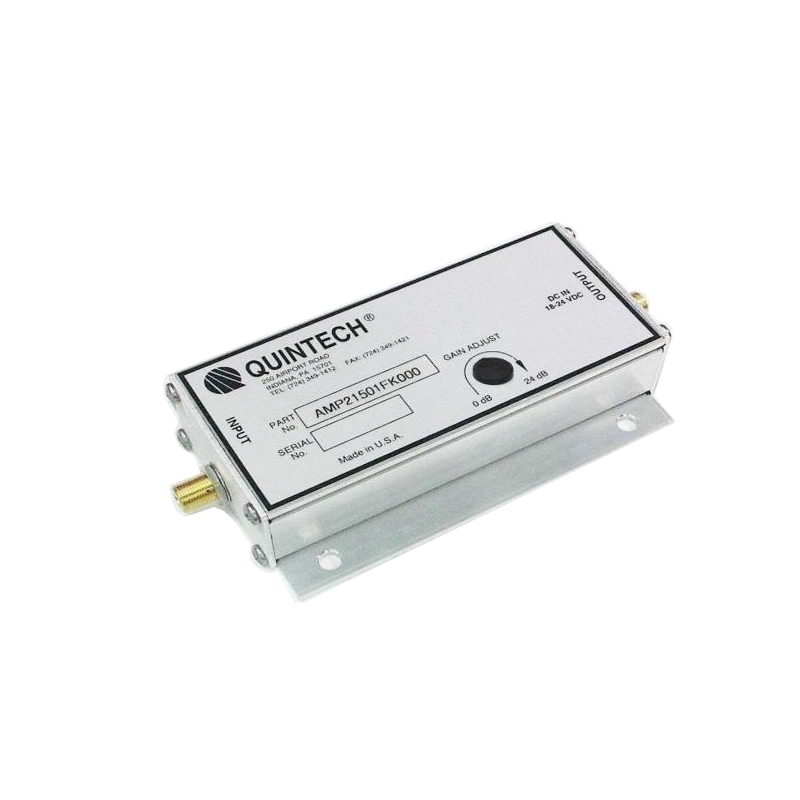

The Quintech AMP21501FK000 (AMP 2150) is a weatherproof L-band line amplifier with adjustable gain for compensating signal loss through long coaxial cable runs and RF distribution networks. It operates from 700 to 2150 MHz and provides an internally adjustable gain range of 0 to +24 dB.

The amplifier is factory preset to +20 dB gain and can be adjusted using its internal potentiometer. It passes both DC voltage for LNB powering and a 10 MHz reference signal, making it suitable for satellite communication systems requiring RF, reference and DC transmission over the same coaxial cable.

The AMP21501FK000 receives its 18-24 VDC operating power through the RF output connector. Its rugged, weatherproof extruded housing supports indoor or outdoor installation.

Specifications:

Product Type: Adjustable-Gain L-Band Line Amplifier
Manufacturer: Quintech Electronics
Product Series: AMP 2150
Part Number: AMP21501FK000
Frequency Range: 700-2150 MHz
Gain Range: 0 to +24 dB, internally adjustable
Factory-Preset Gain: +20 dB
10 MHz Reference: Pass-through
10 MHz Insertion Loss: 1.5 ± 0.5 dB at +20 dB gain
DC and LNB Power: Pass-through
Frequency Response: ±1 dB at +20 dB gain
Noise Figure: 8 dB at +20 dB gain
Input P1dB: -10 dBm
OIP3: 12 dBm at +20 dB gain
Group Delay: ±0.3 ns
Input Return Loss: 12 dB minimum
Output Return Loss: 12 dB minimum
MTBF: 54 years
Power Requirements: +18 to +24 VDC, 190 mA
Power Input: Through RF output connector
Power Consumption: 4.6 W
RF Connectors: Type F, 75 ohms
Operating Temperature: -10°C to +60°C
Housing: Weatherproof extruded enclosure
Dimensions: 5 in. L × 3.25 in. W × 1.25 in. H
Weight: 0.5 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
