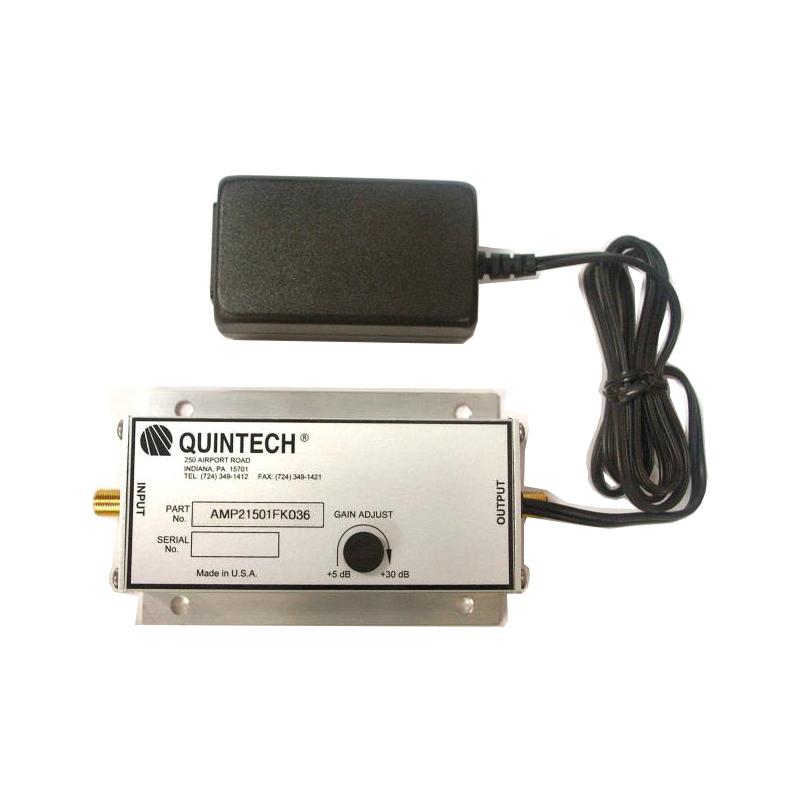

Quintech AMP21501FK036 L-Band Line Amplifier

Quintech AMP21501FK036 L-Band Line Amplifier with 5–30 dB Adjustable Gain, 700–2150 MHz

The Quintech AMP21501FK036 is an adjustable-gain L-band line amplifier designed to compensate for signal loss through long coaxial cable runs and RF distribution networks. It operates across the 700–2150 MHz frequency range and provides internally adjustable gain from +5 to +30 dB.

Built with reliable surface-mount technology and advanced microstrip RF circuitry, the AMP21501FK036 delivers dependable amplification for satellite, broadcast and telecommunications systems. Its rugged, weatherproof extruded housing supports indoor or outdoor installation, while DC pass-through allows LNB power to travel through the RF path.

Specifications:

Product Type: Adjustable-Gain L-Band Line Amplifier
Manufacturer: Quintech Electronics
Product Series: AMP 2150
Part Number: AMP21501FK036
Frequency Range: 700–2150 MHz
Impedance: 75 Ohms
Gain Range: +5 to +30 dB
Gain Adjustment: Internal Potentiometer
Factory-Preset Gain: +30 dB
Frequency Response: ±1 dB at +20 dB Gain
Noise Figure: 8 dB at +20 dB Gain
Input P1dB: -10 dBm
OIP3: +12 dBm at +20 dB Gain
Group Delay: ±0.3 ns
Input Return Loss: 11 dB
Output Return Loss: 12 dB
RF Connectors: 75-Ohm Type F
DC Pass-Through: Yes, for LNB Power
Power Requirements: 100–240 VAC, 50/60 Hz, Autoranging
Power Connection: AC/DC Adapter
Power Consumption: 21 W
MTBF: 54 Years
Operating Temperature: -10°C to +60°C
Enclosure: Rugged Weatherproof Extruded Housing
Dimensions: 1.25 in. H × 3.25 in. W × 5 in. L
Weight: 0.5 lb.
Country of Manufacture: USA

Important: The AC power cord is sold separately.

Available now at Esatcom Inc. Please contact us for pricing and lead time.
