Quintech AMP21504FA033 700–2150 MHz Quad Adjustable-Gain L-Band Amplifier

Quintech AMP21504FA033 Quad Adjustable-Gain L-Band Amplifier with DC Blocking, 700–2150 MHz

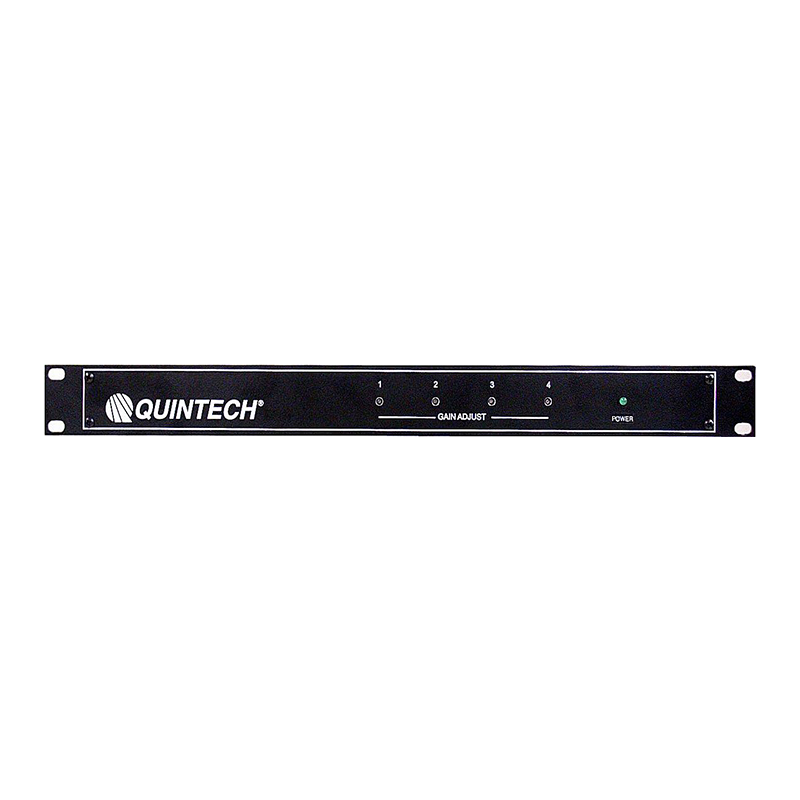

The Quintech AMP21504FA033 is a quad adjustable-gain L-band amplifier containing four independent amplifier channels in a single 1RU rackmount enclosure. Each channel operates across the 700–2150 MHz frequency range and provides front-panel adjustable gain from 0 to +26 dB.

Designed to compensate for signal loss through long coaxial cable runs and RF distribution networks, the AMP21504FA033 is built with reliable surface-mount technology and advanced microstrip RF circuitry. All RF inputs and outputs are DC blocked, protecting the amplifier channels from externally applied DC voltage. The unit features 75-ohm Type F connectors and an internal universal AC power supply.

Specifications:

Product Type: Quad Adjustable-Gain L-Band Amplifier
Manufacturer: Quintech Electronics
Product Series: AMP 2150/4
Part Number: AMP21504FA033
Amplifier Channels: 4 Independent Channels
RF Inputs: 4
RF Outputs: 4
Frequency Range: 700–2150 MHz
Impedance: 75 Ohms
Gain Range: 0 to +26 dB
Gain Adjustment: Front Panel
Factory-Preset Gain: +20 dB
Frequency Response: ±1 dB at +20 dB Gain
Noise Figure: 8 dB at +20 dB Gain
Input P1dB: -10 dBm
OIP3: +12 dBm at +20 dB Gain
Group Delay: ±0.3 ns
Input Return Loss: 10 dB
Output Return Loss: 12 dB
DC Blocking: All RF Inputs and Outputs
RF Connectors: 75-Ohm Type F
Power Requirements: 100–240 VAC, 50/60 Hz, Autoranging
Power Consumption: 28 W
MTBF: 54 Years
Operating Temperature: -10°C to +60°C
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 14 in. D
Net Weight: 5 lb.
Gross Weight: 7 lb.
