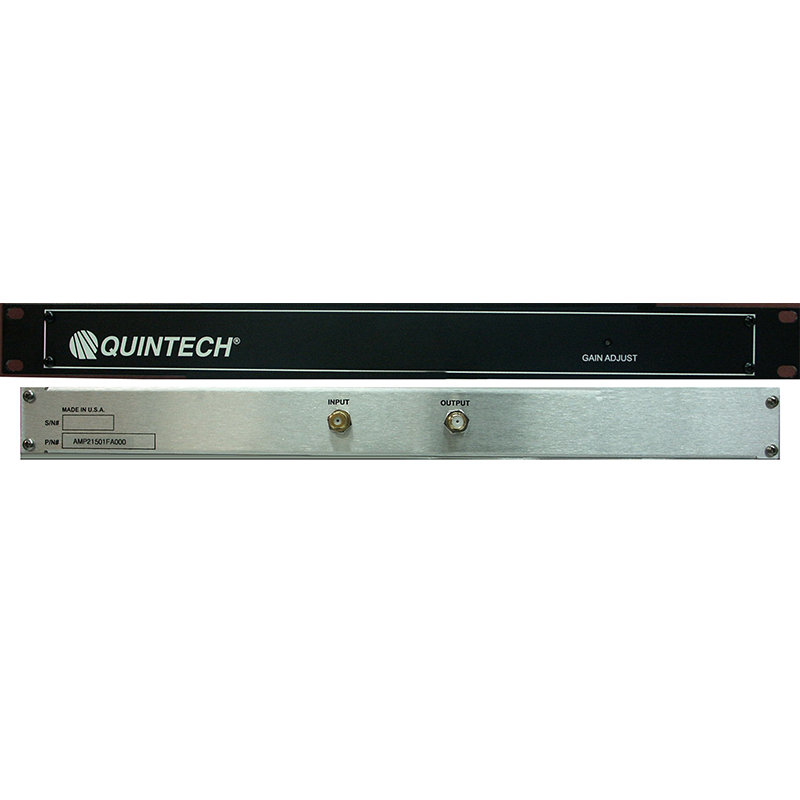

The Quintech AMP21501FA000 is a single-channel L-band line amplifier with front-panel gain adjustment from 0 to +24 dB. Operating across 700–2150 MHz, it compensates for signal loss through long coaxial cable runs and RF distribution networks.

The amplifier is factory preset to +20 dB gain and provides a frequency response of ±1 dB at that setting. It also passes a 10 MHz reference signal and DC power for an LNB, supporting satellite systems that require reference and power transport over the RF cable.

The AMP21501FA000 uses 75-ohm Type F connectors and receives its 18–24 VDC operating power through the RF output connector. DC power must not be applied to the RF input.

Specifications:

Product Type: Adjustable-Gain L-Band Line Amplifier
Manufacturer: Quintech Electronics
Product Series: AMP 2150
Part Number: AMP21501FA000
RF Channels: 1
Frequency Range: 700–2150 MHz
Gain Range: 0 to +24 dB
Gain Adjustment: Front Panel
Factory-Preset Gain: +20 dB
Frequency Response: ±1 dB at +20 dB Gain
10 MHz Reference Pass: Yes
10 MHz Insertion Loss: 1.5 dB ±0.5 dB at +20 dB Gain
DC Pass-Through: Yes, for LNB Power
Noise Figure: 8 dB at +20 dB Gain
Input P1dB: -10 dBm
OIP3: +12 dBm at +20 dB Gain
Group Delay: ±0.3 ns
Input Return Loss: 12 dB
Output Return Loss: 12 dB
RF Connectors: 75-Ohm Type F
Power Input: Through RF Output Connector
Power Requirements: 18–24 VDC at 190 mA
Power Consumption: 4.6 W
Power Connection Warning: Do Not Apply DC Power to the RF Input
Mean Time Between Failures: 54 Years
Operating Temperature: -10°C to +60°C
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.5 lb.
Gross Weight: 3.5 lb.
