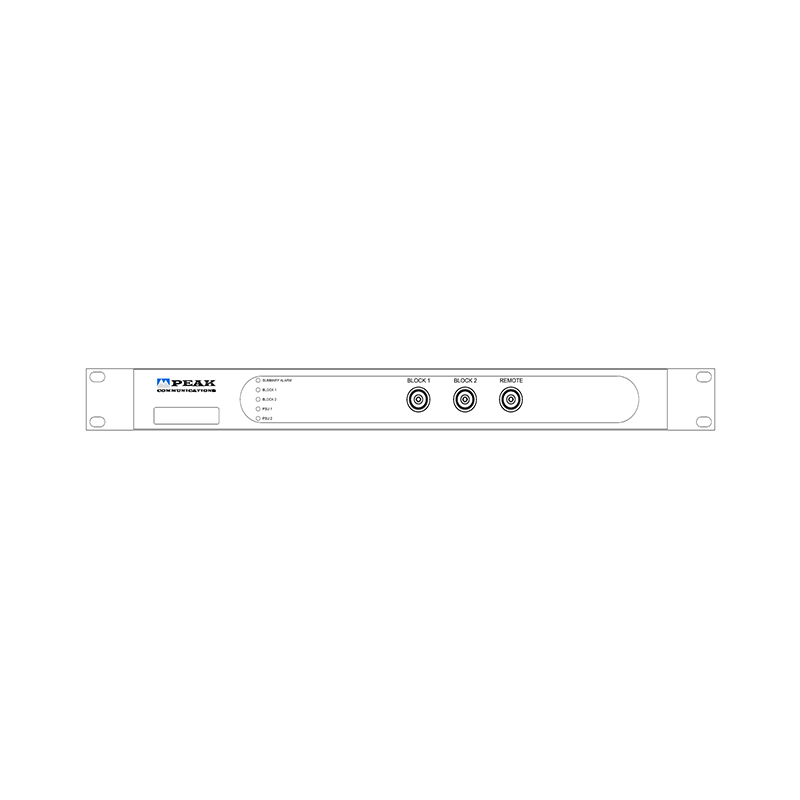

Peak D502 Dual-Channel LNB Driver Unit with Remote Control

Peak Communications D502 Dual-Channel LNB Driver Unit provides DC power, reference frequency injection, and remote management for one or two satellite LNBs. Designed for dual-feed antenna systems, the D502 supports dual-range LNB voltage switching, current sensing with user-configurable alarms, optional high-stability 10 MHz reference generation, and Ethernet/SNMP management. With redundant power supplies as standard, the D502 is an ideal solution for teleport, gateway, broadcast, military, and VSAT earth station applications requiring reliable LNB power and reference distribution.

Key Features:

• 19-inch 1U rack-mounted dual-channel LNB driver unit

• Supports one or two LNBs for dual-feed antenna systems

• Dual-range +13 VDC / +18 VDC LNB voltage switching

• Current sensing with user-configurable alarm levels

• Optional high-stability 10 MHz reference generation

• Automatic external reference detection and locking

• Optional 22 kHz tone generation for multi-band LNBs

• Ethernet remote management with embedded web server and SNMP

• Dual redundant power supplies as standard

• Summary alarm interface

• Ideal for teleport, gateway, broadcast, military, and VSAT applications
