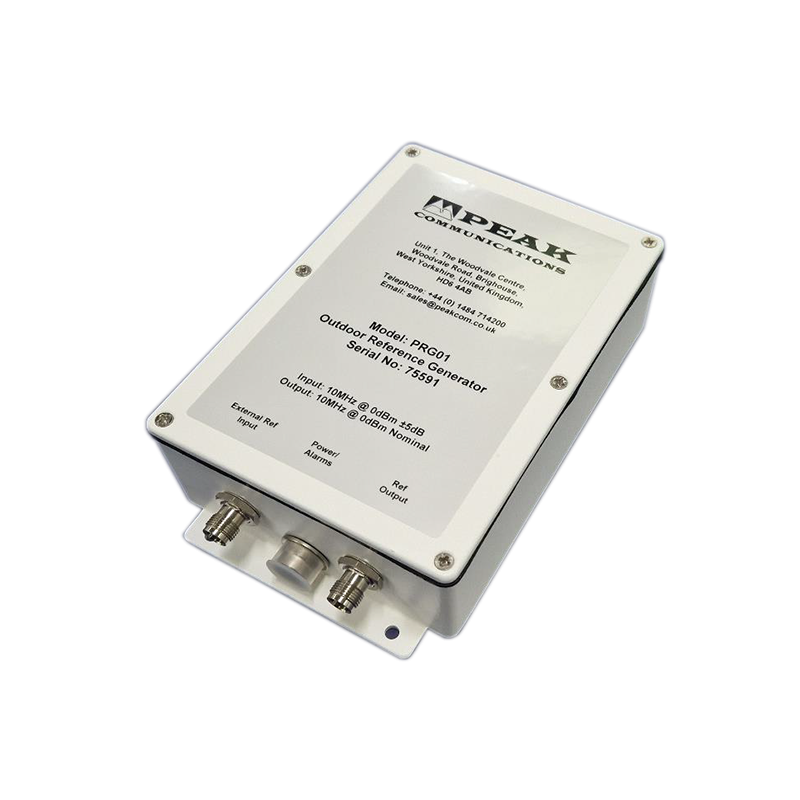

Peak PRG Series Remote Mounted Reference Generation Units

Peak Communications PRG Series Remote Mounted Reference Generation Units provide highly stable frequency reference generation and multi-way signal distribution for outdoor satellite earth station applications. Available with 1-, 2-, 4-, 6-, and 8-way outputs, the PRG Series supports 5 MHz, 10 MHz, 50 MHz, and 100 MHz reference frequencies with automatic external reference detection and internal backup. Featuring a rugged IP66 weatherproof enclosure and DC-powered operation, the PRG Series is ideal for remote BUCs, BDCs, LNBs, frequency converters, and outdoor RF equipment used in teleport, gateway, broadcast, military, and VSAT systems.

Key Features:

• Remote-mounted weatherproof reference generation and distribution units

• Rugged IP66 die-cast aluminum enclosure

• Available with 1-, 2-, 4-, 6-, and 8-way outputs

• Supports 5 MHz, 10 MHz, 50 MHz, and 100 MHz reference frequencies

• High-stability internal reference generator

• Automatic external reference detection, locking, and internal backup

• Low phase noise and excellent frequency stability

• Balanced multi-way reference signal distribution

• DC-powered operation for outdoor installations

• Optional low-temperature operation to -40°C

• Ideal for teleport, gateway, broadcast, military, and VSAT applications
