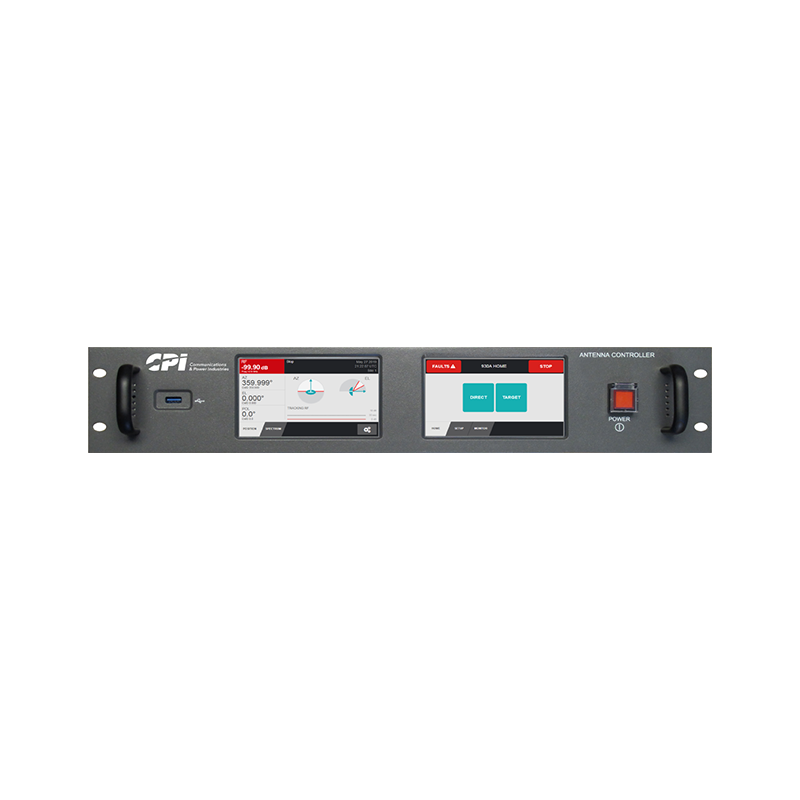

The CPI Model 930A is a cost-effective satellite antenna tracking and control system designed for fixed antennas using a single AC motor per axis. It combines an Antenna Control Unit (ACU), internal tracking receiver (TRU) and inverter Power Drive Unit (PDU) for precise pointing, acquisition and tracking.

Tracking Accuracy: ≤10% of receive beamwidth RMS
Pointing Accuracy: ≤0.05° RMS
Recommended Antenna Beamwidth: Greater than 0.3°
Satellite Tracking: GEO satellites with inclination up to 5°
Axes: Three-axis control
Tracking Receiver Input: 950–2150 MHz L-band
Receiver Input Level: -85 to -10 dBm
Control Interface: Ethernet TCP/IP, SNMP and HTML5 Web GUI
Motor Support: Single AC inverter-duty motor per axis
Compliance: CE, FCC Class A and REACH

Key Features

• Precision satellite acquisition, pointing and tracking

• Enhanced Memory Track, Step Track and Intelsat 11 modes

• Preset, Designate and Table Track pointing modes

• Dual-color touchscreen displays

• Integrated L-band tracking receiver with spectrum display

• Dual-speed inverter axis drives

• Compatible with CPI Model 7150 Power Drive Units

• Replacement for the CPI Model 7134

• Field-upgradeable software

• Optional Portable Maintenance Unit

• Available extended-temperature configuration
