CPI 830A ACS

CPI 830A Antenna Control System | Precision Tracking for Fixed & Mobile SATCOM

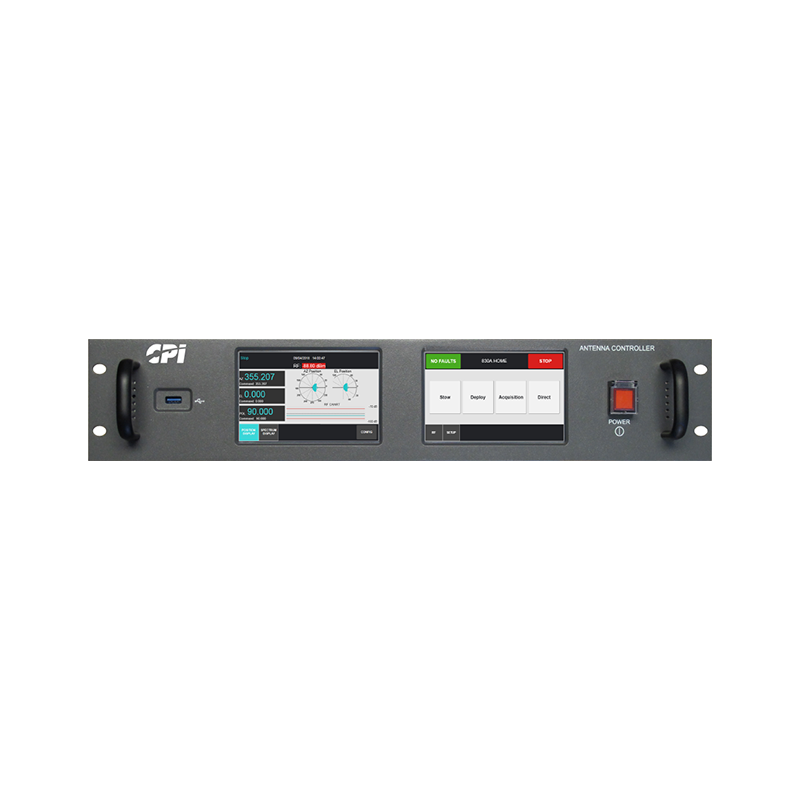

The CPI Model 830A is a high-performance antenna control system optimized for precision satellite tracking with fixed, mobile, transportable, and flyaway antennas. It features enhanced Memtrack, Steptrack, and auto acquisition modes, with dual color touch displays and an optional internal tracking receiver. Supporting a wide range of antennas, the 830A offers easy operation, CE/FCC/WEEE compliance, and rugged environmental tolerance, making it ideal for cost-effective yet accurate SATCOM installations.

Key Features:

Supports Steptrack, Memtrack, NORAD & table track modes
One-touch auto deploy, track, stow, and calibrate
Dual touch-screen ACU with built-in processor and M&C interface
Internal L-Band tracking receiver (950–2150 MHz input, 45 dB-Hz C/No)
Pointing accuracy: ≤0.07° RMS in gusty winds
Tracking accuracy: better than 10% of beamwidth in 5° inclined orbits
2RU rackmount chassis; 100–240 VAC, 600W max
Interfaces: Resolver or potentiometer feedback, AZ/EL/POL motor amp
CE, FCC, WEEE compliant
Recommended for antenna beamwidths >0.3°
Applications:

Fixed or vehicle-mounted SATCOM antennas
Economical yet precise tracking for mobile systems
Flyaway terminal deployments
