CPI 950E

CPI 950E Antenna Control System | Advanced Tracking & Pointing Controller

The CPI 950E is a versatile antenna control system ideal for single or multi-speed AC motor-driven antennas. Featuring Optrack, Steptrack, and extensive pointing and acquisition modes, it ensures high-precision tracking of inclined GEO satellites. The system includes a touchscreen ACU, a high-performance PDU, and optional internal or external tracking receivers. With CE compliance, Intelsat Standard A compatibility, and an IP66-rated inverter drive enclosure, the 950E is engineered for both fixed and mobile SATCOM applications in challenging environments.

Key Features:

Full tracking, pointing, acquisition, and diagnostic modes
Tracking accuracy: ≤5% of beamwidth | Pointing accuracy: ≤0.05° RMS
Optrack with adaptive ephemeris modeling for inclined orbit satellites

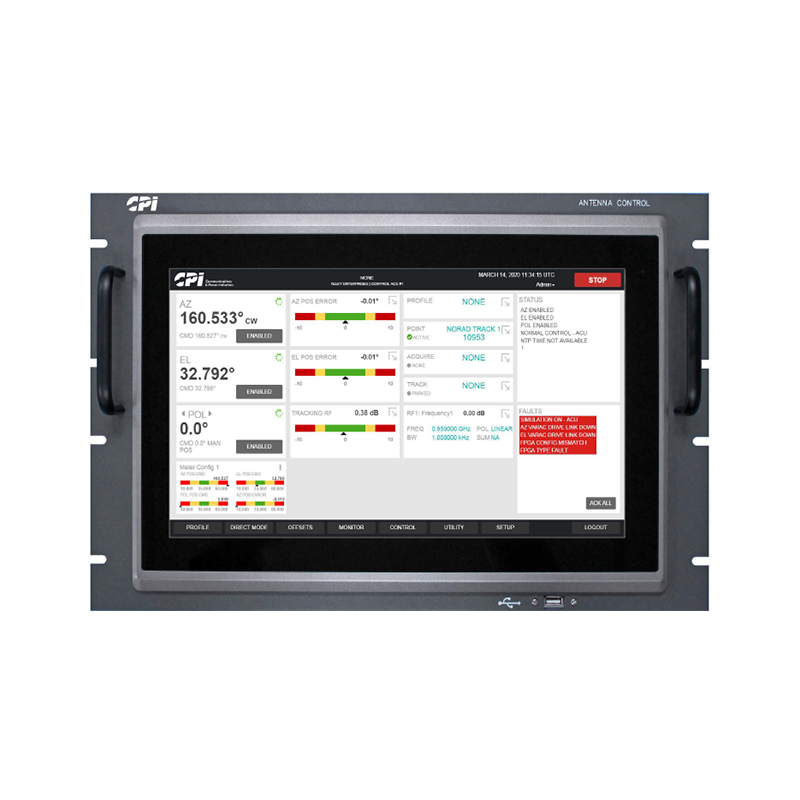

7RU ACU with 15" touchscreen and HTML5 browser interface
CE & FCC Class A compliant; wide operating temperature support
Optional PMU for local manual control
Flexible Ethernet-based architecture for ACU, TRU, and PDU
Supports Intelsat 11, NORAD, Moon/Sun Track, Geo Scan, and more
Optional GPS/GNSS, heading, and tilt sensors for mobile use
Applications:

Fixed or mobile satellite earth stations

Flyaway and transportable systems

Ground stations requiring robust M&C integration
