CPI Model 520A Analog Tracking Receiver

CPI Model 520A Analog Tracking Receiver

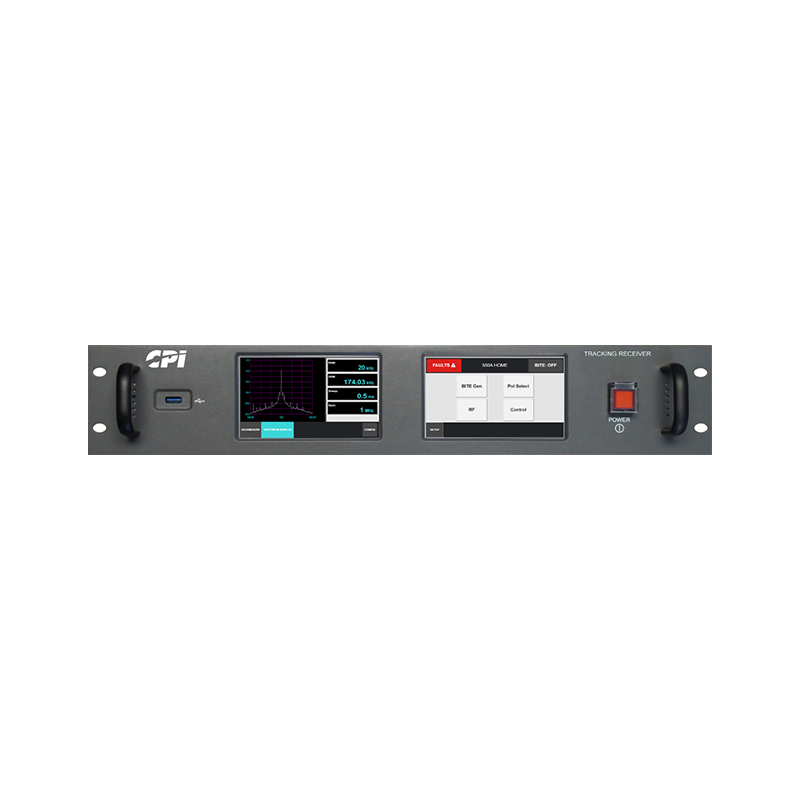

The CPI Model 520A is a high-performance analog tracking receiver designed for satellite beacon tracking and Uplink Power Control (UPC) applications. Its extended L-band input, fast acquisition and optional internal block downconverters support single- or multi-band operation from L-band through Ka-band.

Receiver Type: Analog PLL

Frequency Range: 890–2450 MHz
Beacon Input Level: 0 to -96 dBm
Maximum Total Input Power: +10 dBm
Tuning Step Size: 1 kHz
Predetection Bandwidth: 280 kHz or 6 kHz
Narrowband Acquisition: 40 dB-Hz C/No at 6 kHz
Sweep Width: ±40 to ±300 kHz
Acquisition Time: 1 second at 6 kHz bandwidth and 120 kHz sweep
Dynamic Range: Greater than 90 dB
RF Bands: L, S, C, X, Ku and Ka
Interfaces: Ethernet, RS-232, RS-422 and USB
Track Signal Outputs: Analog and streaming digital
Dimensions: 3.5 × 19 × 20 in.
Compliance: FCC, CE and REACH

Key Features:

• High-performance analog beacon receiver

• Quick-Lock satellite signal acquisition

• Extended 890–2450 MHz L-band coverage

• Optional internal block downconverters

• Up to four internal BDCs

• Single-, dual- or custom multi-polarization inputs

• Single- or multi-band downconversion

• L-, S-, C-, X-, Ku- and Ka-band support

• Optional monopulse capability with RF plate

• Dual touchscreen operator interface

• HTML5 remote graphical user interface

• Internal L-band test-signal generator

• Ethernet connection to CPI antenna control systems

• Configurable analog output for third-party controllers

• Suitable as a UPC receiver signal source

• Optional short-depth, display-free chassis
