CPI Model 1241 Gas Automatic Deicing System

CPI Model 1241 Gas Automatic Deicing System

The CPI Model 1241 Gas Automatic Deicing System (ADS) prevents ice and snow buildup on medium- to large-aperture earth station antennas. Designed for CPI antennas from 4.8 to 16.4 meters, it uses gas-fired forced-air heating for the main reflector and electric heating for the feed window and sub-reflector, reducing electrical demand and operating costs.

Antenna Size: 4.8 to 16.4 m standard configurations
Deiced Components: Main reflector, sub-reflector and feed window
Reflector Heating: Gas-fired forced-air convection
Feed/Sub-Reflector Heating: Electric conductive or forced-air heating
Operating Modes: Automatic, Manual and Standby
Reflector Heat Control: Two stages
Feed/Sub-Reflector Heat Control: One stage
Ice Detection Range: 15°F to 44°F (-9°C to 7°C)
Monitor and Control: Web GUI, command-line interface and CPI antenna control systems
Communications: Ethernet standard; fiber optic optional
Gas Fuel: Natural gas or liquefied petroleum gas (LPG)
Outdoor Enclosure: NEMA 4, IP66 equivalent
Operating Temperature: -40°C to +50°C
Power: Three-phase, five-wire WYE; 208 or 380-415 VAC
Compliance: CE

Key Features:

• Gas heating reduces electrical load and operating costs

• Automatic rain, snow and freezing-condition detection

• Prevents ice accumulation on critical antenna surfaces

• Configurable staged heating for efficient operation

• Manual control of individual heating groups

• Heavy-duty fan-forced gas reflector heaters

• Isolated combustion system prevents byproduct buildup

• Adjustable moisture sensitivity and activation temperature

• Configurable shutoff delay after icing conditions end

• Ethernet-based local and remote monitoring

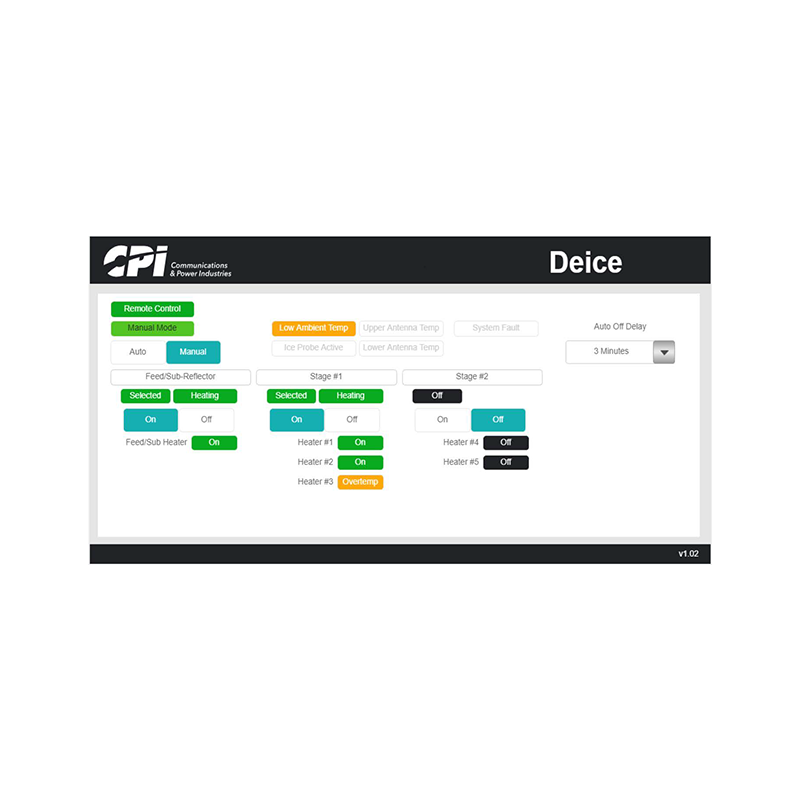

• Intuitive Web GUI and command-line interface

• Integration with CPI antenna control systems

• PLC-based controller for headless operation

• Weather-resistant outdoor Power Control Unit

• Free-standing or wall-mounted installation

• Electric-to-gas conversion option for Model 1230 systems

• Custom configurations available for non-standard antennas
