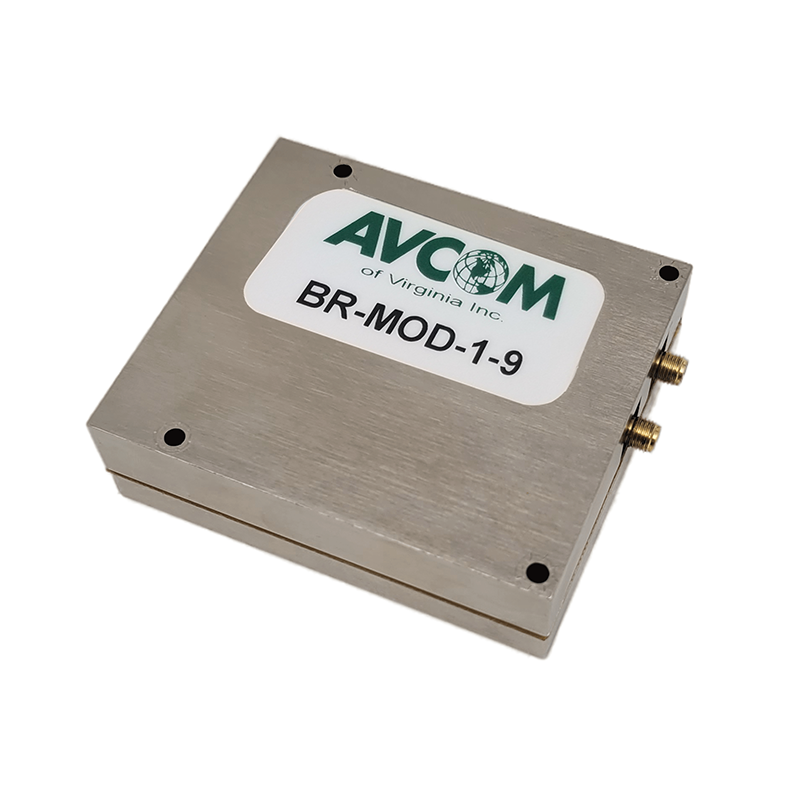

AVCOM BR-MOD-1-9-A-2S-3040 Embedded Extended-Band Dual Input Beacon Receiver Module

AVCOM BR-MOD-1-9-A-2S-3040 Embedded Extended-Band Dual Input Beacon Receiver Module

The AVCOM BR-MOD-1-9-A-2S-3040 Embedded Extended-Band Dual Input Beacon Receiver Module is a compact software-defined radio (SDR) beacon receiver designed for SATCOM, VSAT, teleports, earth stations, antenna tracking, Satcom-On-The-Move (SOTM), and RF signal monitoring applications. Featuring dual RF inputs and 400–3000 MHz extended-band coverage, it enables simultaneous monitoring and tracking of multiple beacon signals across a wider frequency range while maintaining a compact, low SWaP (Size, Weight, and Power) design.

Operating from 400 to 3000 MHz, the BR-MOD-1-9-A-2S-3040 tracks CW beacon, BPSK, and DVB carriers using AVCOM's exclusive CEPT (Carrier-Edge-Power-Track) technology. Ethernet connectivity, EVO GUI software, and a comprehensive POSIX-compliant API provide advanced monitoring, remote control, alarm management, and seamless integration into OEM antenna tracking and satellite monitoring systems.

Key Features:

• 400–3000 MHz Extended Frequency Coverage

• Dual RF Input Architecture

• Simultaneous Dual Beacon Monitoring

• Tracks CW Beacon, BPSK, and DVB Carriers

• AVCOM CEPT Carrier-Edge-Power-Track Technology

• Software-Defined Radio (SDR) Architecture

• Ethernet Monitoring and Control

• AVCOM EVO GUI and POSIX-Compliant API

• Extended Operating Temperature (-40°C to +70°C)

• Ideal for SOTM, Antenna Tracking, SATCOM, VSAT, and Earth Stations
