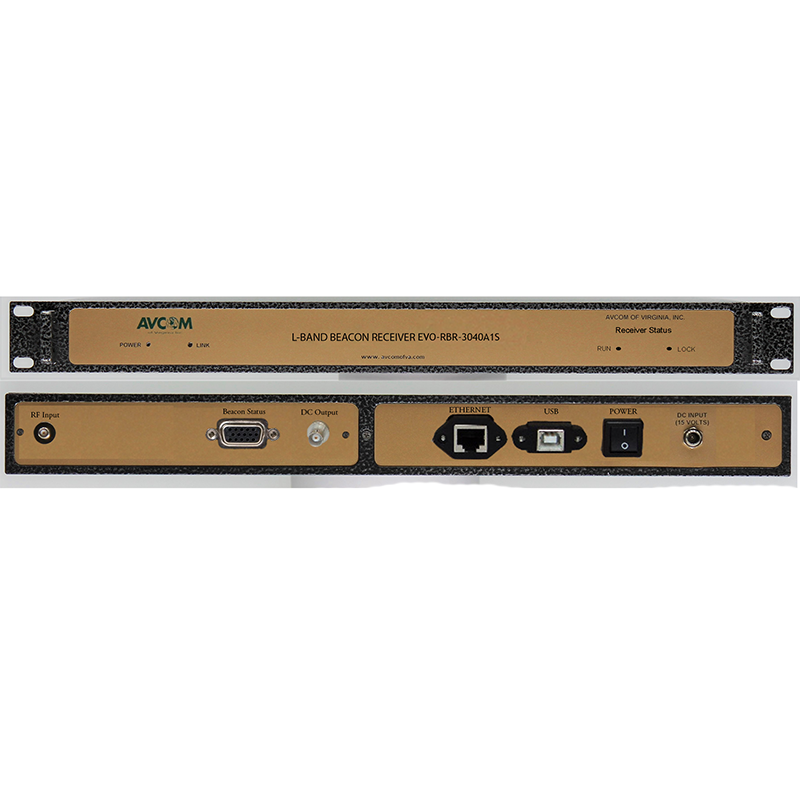

AVCOM EVO-RBR-3040A1S Rackmount Extended-Band Beacon Receiver

AVCOM EVO-RBR-3040A1S Rackmount Extended-Band Beacon Receiver

The AVCOM EVO-RBR-3040A1S Rackmount Extended-Band Beacon Receiver is a professional software-defined radio (SDR) beacon receiver designed for SATCOM, VSAT, teleports, earth stations, antenna tracking, gateway systems, and Satcom-On-The-Move (SOTM) applications. Built on AVCOM's latest SDR platform, it delivers high-performance beacon tracking, remote monitoring, and reliable operation in both rugged outdoor and fixed indoor satellite communication systems.

Operating across the 400–3000 MHz frequency range, the EVO-RBR-3040A1S tracks CW, BPSK, and DVB carriers using AVCOM's CEPT (Carrier-Edge-Power-Track) technology. Ethernet and USB connectivity, AVCOM EVO-GUI software, a POSIX-compliant API, and 0–10 VDC analog signal strength output provide seamless integration into antenna control, network monitoring, and OEM systems.

Key Features:

• 400–3000 MHz Extended Frequency Coverage

• Software-Defined Radio (SDR) Architecture

• Tracks CW, BPSK, and DVB Carriers

• AVCOM CEPT Carrier-Edge-Power-Track Technology

• Ethernet and USB Monitoring & Control

• AVCOM EVO-GUI with POSIX-Compliant API

• 0–10 VDC Analog Signal Strength Output

• Extended Operating Temperature (-40°C to +70°C)

• Designed for Teleports, Earth Stations, Antenna Tracking, SATCOM, VSAT, and OEM Integration
