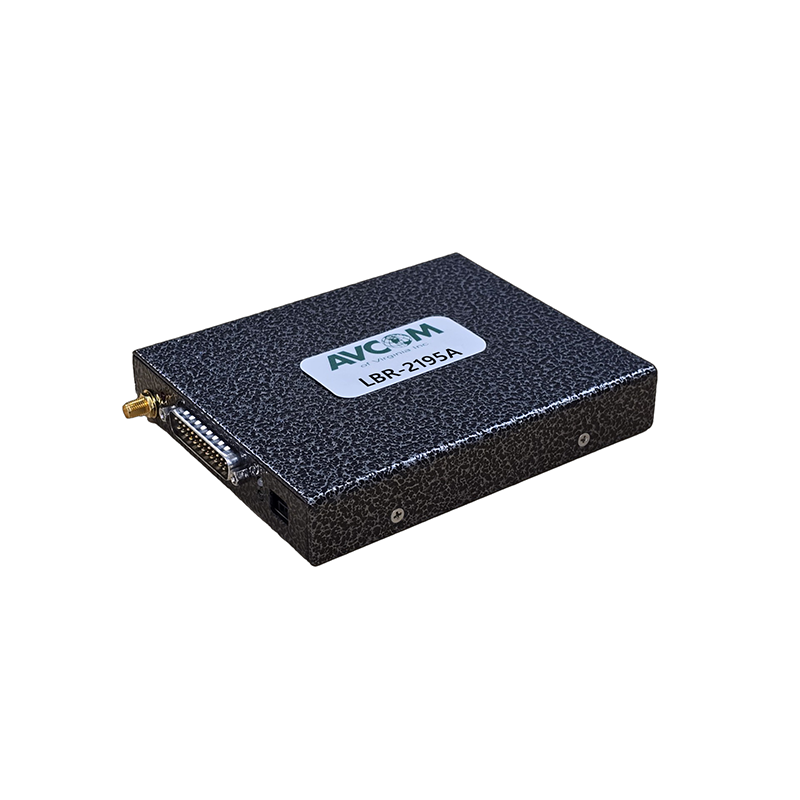

AVCOM LBR-2195A Embedded L-Band Beacon Receiver Module

AVCOM LBR-2195A Embedded L-Band Beacon Receiver Module

The AVCOM LBR-2195A Embedded L-Band Beacon Receiver Module is a compact L-Band beacon receiver designed for SATCOM, VSAT, teleports, earth stations, antenna tracking, uplink power control, and Satcom-On-The-Move (SOTM) applications. Its low SWaP-C (Size, Weight, Power, and Cost) design and serial communication interfaces make it an ideal solution for OEM system integration and embedded antenna control systems.

Operating across the 950–2150 MHz L-Band, the LBR-2195A tracks CW, BPSK, and DVB carriers using CEPT (Carrier-Edge-Power-Track) technology while providing a 0–10 VDC analog signal strength output for antenna pointing and uplink power control. RS-232, RS-422, USB connectivity, a text-based API, and comprehensive development tools simplify integration into new and existing satellite communication systems.

Key Features:

• 950–2150 MHz L-Band Frequency Coverage

• Tracks CW, BPSK, and DVB Carriers

• CEPT (Carrier-Edge-Power-Track) Technology

• 0–10 VDC Analog Signal Strength Output

• RS-232, RS-422, and USB Interfaces

• Text-Based API for Easy OEM Integration

• Compact Low SWaP-C Design

• Extended Operating Temperature (-30°C to +60°C)

• Ideal for Antenna Tracking, Uplink Power Control, SATCOM, VSAT, and SOTM Applications
