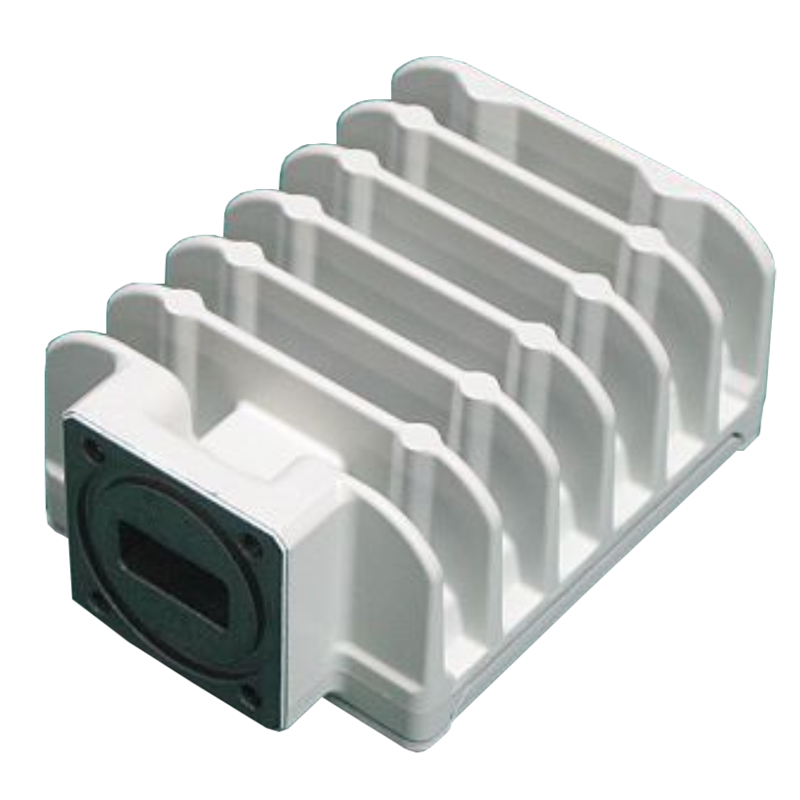

Nisshinbo NJT8315LN Ku-band 12.75 - 13.25 GHz 2W BUC

The NJT8315LN is a compact and high-performance Ku-band 2W BUC (Block Upconverter) designed for VSAT uplink applications. It operates over 12.75–13.25 GHz (Lower Ku-band) with a 11.8 GHz local oscillator, converting L-band IF signals (950–1450 MHz) to RF for reliable satellite transmission. With +33 dBm output power, stable gain, and support for external 10 MHz reference, it ensures consistent uplink performance in broadband and enterprise satellite systems.

Key Specifications

RF Frequency: 12.75 – 13.25 GHz (Lower Ku-band)

IF Frequency: 950 – 1450 MHz

Local Oscillator: 11.8 GHz

Output Power: +33 dBm (2W) min.of P1dB

Gain: 59 dB nom., 53 dB min.

Noise Figure: 18 dB nom.

External Reference: 10 MHz input (PLL locked operation)

Input Interface: N-type female (50Ω)

Output Interface: WR-75 waveguide

DC Power: +12 to +30 VDC

Mechanical & Environmental

Waveguide Output: WR-75 (grooved)

Dimensions: 91.55 × 68 × 42.5 mm

Weight: ~350 g

Operating Temperature: -40°C to +55°C

Waterproof: IP67

Applications

VSAT uplink systems

Broadband satellite terminals

Enterprise and telecom networks

Remote communication systems
