Terrasat IBUC G C-band 200W

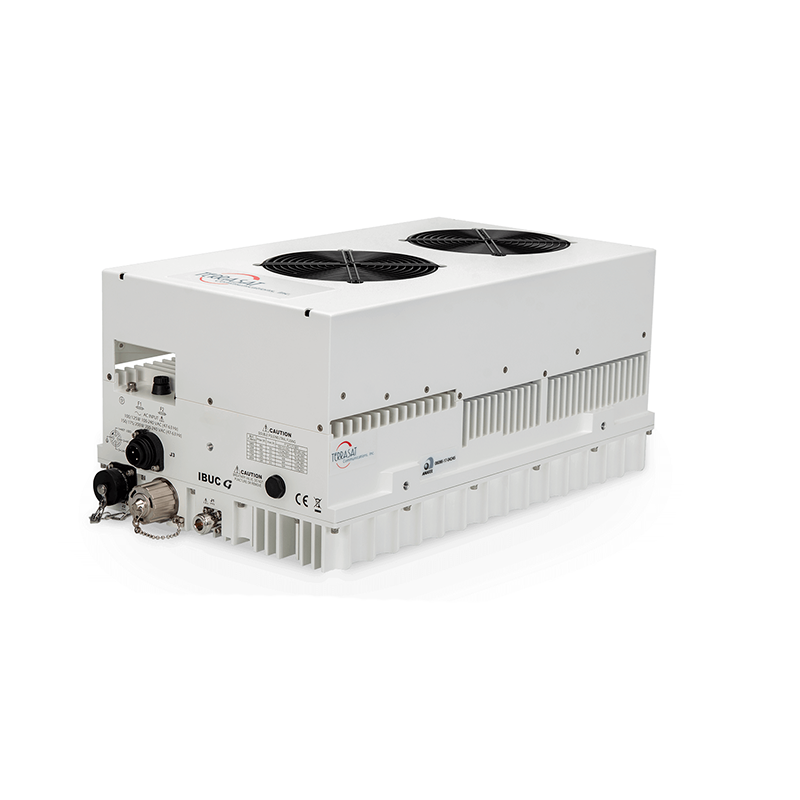

Terrasat IBUC G C-Band 200W GaN BUC

200W GaN Intelligent C-Band Block Upconverter for High-Efficiency Multi-Carrier Uplinks

The Terrasat IBUC-G C-Band 200W is a high-efficiency GaN-based intelligent block upconverter (BUC) engineered for demanding multi-carrier satellite uplink applications. Utilizing advanced Gallium Nitride (GaN) amplifier technology, the IBUC-G delivers high linear output power with improved efficiency and reduced power consumption compared to traditional technologies.

Designed for broadband, maritime, broadcast, teleport, and defense SATCOM systems, the 200W IBUC-G supports full C-band coverage and offers flexible configuration options including spectral sense, 10 MHz reference stability, and Cyber Hardened monitoring.

Esatcom Inc. supplies factory-configured IBUC-G units tailored to your project requirements.

Why Choose GaN Technology?

Compared to earlier amplifier technologies:

Higher power efficiency
Reduced power consumption
Compact outdoor form factor
Excellent linear performance for multi-carrier operation
Solid-state reliability

The IBUC G is ideal for high data rate, high spectral efficiency uplinks where linearity and efficiency are critical.

Frequency Coverage (Factory Configurable)

Available RF frequency plans:

5.850–6.425 GHz (Standard C-Band)
5.850–6.650 GHz (Extended C-Band)
5.850–6.725 GHz (Full C-Band)
6.425–6.725 GHz (Palapa C-Band)
6.725–7.025 GHz (INSAT C-Band)

Spectral sense options:

Inverting
Non-Inverting

10 MHz reference:

External
Internal standard (30 ppb)
Internal high stability (5 ppb)

Monitor & Control Options

Standard Version

Ethernet (HTTP, Telnet, SNMPv2c)
RS-232 / RS-485
FSK multiplexed on TX IFL

Cyber Hardened Version (Optional)

HTTPS, SSHv2, SNMPv3
FIPS 140-2 compatible
Dual NTP redundancy
Enhanced controller board and firmware

Ideal for secure government and mission-critical SATCOM networks.

Power & Mechanical

AC Powered: 100–240 VAC, 50/60 Hz
Reduced power consumption thanks to GaN efficiency
Operating temperature: −40°C to +55°C
100% condensing humidity
Altitude: 10,000 ft (3,000 m)
Weight: approx. 33 lbs (14.9 kg)
Size: 16.2 × 10 × 7.6 in (411 × 254 × 193 mm)

Outdoor-rated and suitable for antenna-mounted installations.

Ordering Options

Configurable parameters include:

RF frequency plan
Spectral sense
10 MHz reference type
WGS compatibility
Standard or Cyber Hardened M&C
IF connector type
Color options

Contact Esatcom Inc. to confirm the correct configuration and part number before ordering.
