Terrasat iBUC G Ku-Band 100W

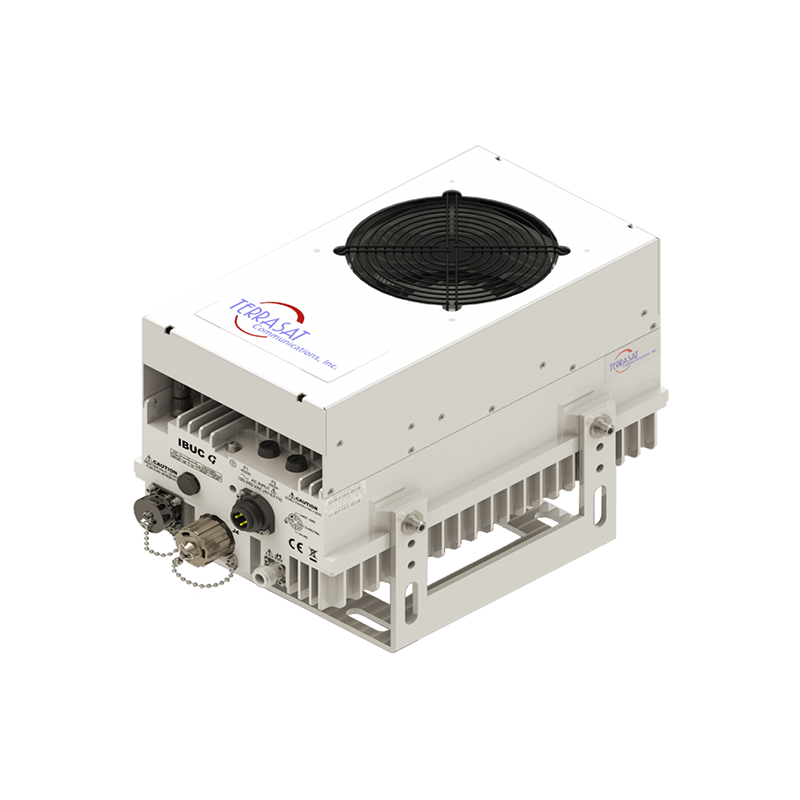

Terrasat IBUC G Ku-Band 100W GaN BUC

100W High-Power GaN Ku-Band Intelligent Block Upconverter for Multi-Carrier Uplinks

The Terrasat IBUC G 100W Ku-Band is a high-power, compact GaN-based intelligent block upconverter engineered for demanding multi-carrier satellite uplinks. Delivering up to 100W output power, the IBUC G combines Gallium Nitride amplifier efficiency with advanced monitoring and control in a rugged outdoor enclosure.

Designed for telecom, broadcast, government, maritime, and defense SATCOM systems, the 100W IBUC-G provides strong linear performance, reduced power consumption compared to legacy designs, and full-feature intelligent diagnostics.

Esatcom Inc. supplies factory-configured Terrasat IBUC G 100W units tailored to your frequency plan and network requirements.

Why Choose the IBUC G 100W?

GaN amplifier technology for improved efficiency
High linear output power (+50 dBm typ. PSat)
19 dB min NPR for multi-carrier performance
Compact outdoor antenna-mount design
AC powered (100–240 VAC)
Cyber Hardened version available

Positioned as the high-power Ku-band GaN solution for demanding uplinks.

Ku-Band Frequency Coverage

Factory-selectable RF frequency plans:

14.000–14.500 GHz (Standard Ku-Band)
13.750–14.500 GHz (Full Ku-Band)
12.750–13.250 GHz (Low Ku-Band)

IF Range:

950–1450 MHz (Std & Low Ku)
950–1700 MHz (Full Ku)

Spectral sense: Non-inverting

Power & Mechanical

AC Input: 100–240 VAC, 50/60 Hz
Power Consumption:
    PSat: approx. 650 VA
    PLin: approx. 550 VA
Mechanical:

              Size: 12.2 × 7.2 × 6.8 in (310 × 183 × 173 mm)
              Weight: approx. 19.5 lbs (8.8 kg)
          Outdoor-rated enclosure for antenna mounting.

Monitor & Control

Standard M&C

Ethernet (HTTP, Telnet, SNMP) via RJ45
RS-232 / RS-485
FSK multiplexed on TX IFL

Cyber Hardened Core Version (Optional)

HTTPS, SSHv2, SNMPv3 (USM & VACM)
FIPS 140-2 compliant
Dual NTP redundancy
Enhanced controller board & firmware

Suitable for secure government and defense networks.

Ordering & Configuration

Configurable parameters include:

RF frequency plan (Std，Full,and Low Ku)
IF connector type
10 MHz reference: External, Internal standard (30 ppb) or Internal high stability (5 ppb)
WGS compatibility
Standard or Cyber Hardened M&C
Color options

Contact Esatcom Inc. to confirm the correct part number before ordering.
