Terrasat IBUC R C-band

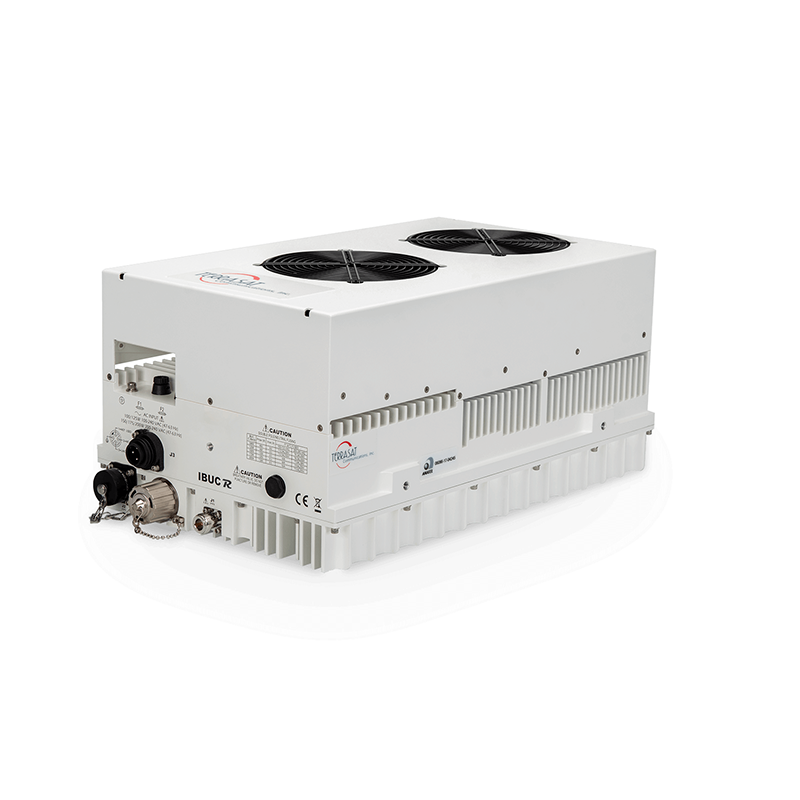

Terrasat IBUC R C-Band GaAs BUC (100W–400W)

Intelligent High-Power C-Band Block Upconverter for Multi-Carrier Uplinks

The Terrasat IBUC R C-Band is a high-performance intelligent block upconverter (BUC) designed for demanding multi-carrier satellite uplink applications. Available in output power levels from 100W to 400W, the IBUC-R combines GaAs SSPA technology, excellent linearity, and advanced monitoring & control in a rugged outdoor package.

Engineered for telecom, broadcast, defense, maritime, and government SATCOM systems, the IBUC-R delivers reliable high-power transmission with flexible frequency plans and configurable 10 MHz reference options.

Esatcom Inc. supplies fully configured Terrasat IBUC R units tailored to your frequency band, reference requirements, and power supply preference.

Available Output Power Options

100W C-Band BUC
125W C-Band BUC
150W C-Band BUC
175W C-Band BUC
200W C-Band BUC
400W C-Band BUC

All models support multi-carrier operation with optimized linearity and low intermodulation performance.

Frequency Plans (Factory Configurable)

5.850–6.425 GHz (Standard C-Band)
5.850–6.650 GHz (Extended C-Band)
5.850–6.725 GHz (Full C-Band)
6.425–6.725 GHz (Palapa C-Band)
6.725–7.025 GHz (INSAT C-Band)

Spectral sense options: Inverting or Non-Inverting
10 MHz reference: External, Internal Standard, or High Stability

RF Performance Highlights

High small-signal gain optimized for long IFL runs
30 dB variable attenuator (0.1 dB step resolution)
Excellent gain flatness across full band
Low IMD for multi-carrier uplink applications
Stable output level with ALC control

Designed for high efficiency while maintaining excellent spectral purity.

Power Supply Options

AC powered models (100W–400W depending on configuration)
DC powered models (42–60 VDC for select models)

Please confirm the power type before ordering.

Request a Quote

The Terrasat IBUC-R is configurable by:

Output power
Frequency plan
Spectral sense
10 MHz reference stability
Power supply type
Standard or Cyber Hardened M&C

Contact Esatcom Inc. to confirm the correct configuration for your project.
