Terrasat iBUC R Ku-Band

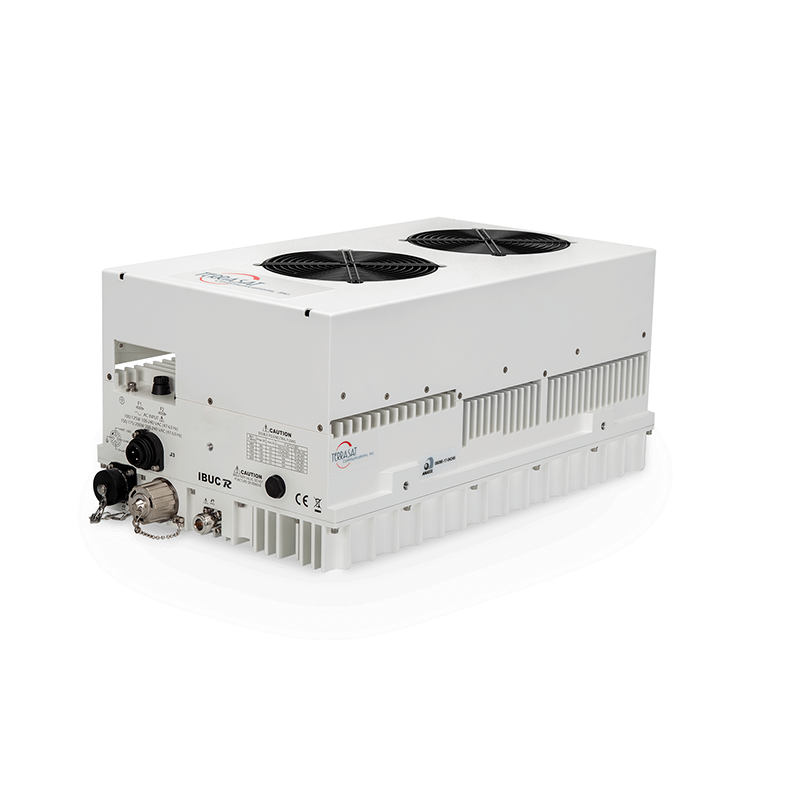

Terrasat IBUC R Ku-Band 60W GaAs BUC

60W Mid-High Power Ku-Band Intelligent Block Upconverter for Multi-Carrier Uplinks

The Terrasat IBUC R 60W Ku-Band is a mid-to-high power intelligent block upconverter (BUC) designed for demanding multi-carrier satellite uplinks. Built using GaAs SSPA technology, the IBUC R delivers strong linear performance, excellent gain, and stable output for telecom, broadcast, maritime, and defense SATCOM systems.

Available in both AC and DC powered versions, the IBUC R 60W is ideal for higher power Ku-band terminals requiring robust performance and advanced monitoring capabilities.

Esatcom Inc. supplies factory-configured Terrasat IBUC R 60W units tailored to your RF frequency plan and system configuration.

Why Choose the IBUC R 60W?

GaAs SSPA technology optimized for linear multi-carrier transmission
Strong IMD performance (−24 dBc typ. at 3 dB TOBO)
High small-signal gain (79 dB min standard version)
AC or DC power options
Intelligent Monitor & Control with Ethernet interface
Cyber Hardened Core version available

Positioned between compact GaN platforms and very high-power teleport amplifiers.

Ku-Band Frequency Coverage

Factory-selectable RF plans:

14.000–14.500 GHz (Standard Ku-Band)
13.750–14.500 GHz (Full Ku-Band)

IF Range:

950–1450 MHz (Standard Ku)
950–1700 MHz (Full Ku)

Spectral sense: Non-inverting

Monitor & Control

Standard M&C

Ethernet (HTTP, Telnet, SNMP) via RJ45
RS-232 / RS-485
FSK multiplexed on TX IFL

Cyber Hardened Core Version (Optional)

HTTPS, SSHv2, SNMPv3 (USM & VACM)
IPv4 & IPv6 compatibility
FIPS 140-2 compliant
Dual NTP redundancy
Enhanced controller board & firmware

Suitable for secure government and defense networks.

Ordering & Configuration

Configurable parameters include:

RF frequency plan (Std or Full Ku)
AC or DC power supply
IF connector type
10 MHz reference: External, Internal standard (30 ppb) or Internal high stability (5 ppb)
WGS compatibility
Standard or Cyber Hardened M&C
Color options

Contact Esatcom Inc. to confirm the correct part number before ordering.
